TOP SPEED
20+ mph
RANGE
UP-TO 85 miles
MOTOR POWER
750W Peak
PAYLOAD
400 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year
Throttle Compatible
Aventure M is a Class II ebike with pedal assist, but can easily be converted to Class 2 by installing a throttle and plugging it into the built-in wiring—offering flexibility for different riding needs. (Throttle sold separately)
Electronic Shifter
The electronic shifter is powered directly by Aventure M’s main battery, delivering smooth, reliable shifting without the need for separate charging—ideal for ultra consistent, low-maintenance riding.
AutoShift
Automatic shifting is an optional feature that measures speed and cadence to automatically select the ideal gear for the terrain ahead, so you can forget about shifting gears and focus solely on enjoying the ride.

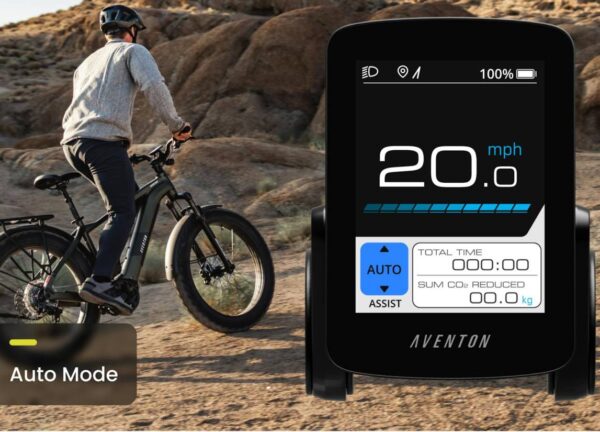

Auto Mode
No need to switch between pedal assist modes. Auto Mode uses internal sensors to adjust motor support based on the terrain’s slope, delivering just the right amount of power exactly when you need it, resulting in a more natural, seamless ride experience.
Geometry
| Frame Size | Regular | Large |
|---|---|---|
| A – Seat Tube Length | 430mm (16″) | 480mm (18″) |
| B – Top Tube Length Horizontal | 605mm (23″) | 643mm (25″) |
| C – Bottom Bracket Drop | 65mm (2″) | 65mm (2″) |
| D – Head Tube Length | 140mm (5″) | 140mm (5″) |
| E – Head Tube Angle | 67° | 67° |
| F – Seat Tube Angle | 72° | 72° |
| G – Rear Chainstay Length | 470mm (18″) | 470mm (18″) |
| H – Front Wheel Center | 693.6mm (27″) | 731.5mm (28″) |
| I – Wheelbase | 1156mm (45″) | 1194mm (47″) |
| J – Reach | 390mm (15″) | 428mm (16″) |
| K – Stack Height | 663mm (26″) | 663mm (26″) |
| L – Fork Length | 525.3mm (20″) | 525.3mm (20″) |
| M – Fork Offset | 43mm (1″) | 43mm (1″) |
| N – Trail | 102.5mm (4″) | 102.5mm (4″) |
| Wheel Size in Inches | 26″ x 4.0″ | 26″ x 4.0″ |
| Rider Height (Range) | 160cm – 175cm (5’3″ – 5’10”) | 175cm – 195cm (5’10” – 6’4″) |
Specs & Details
General Info

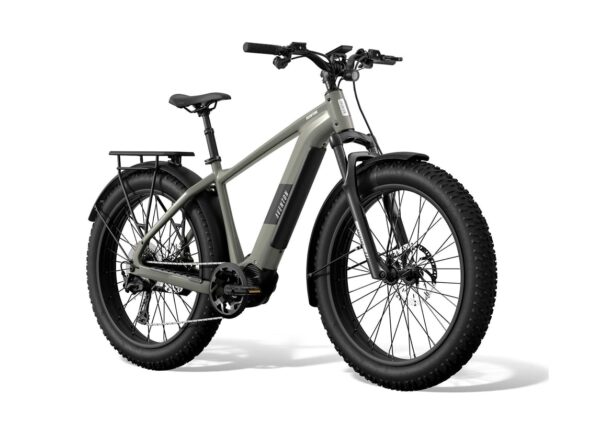

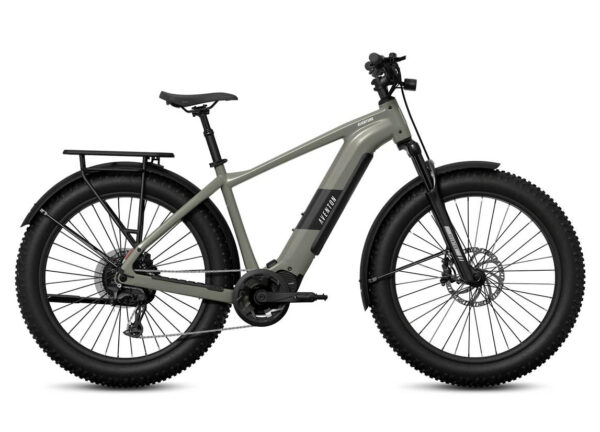

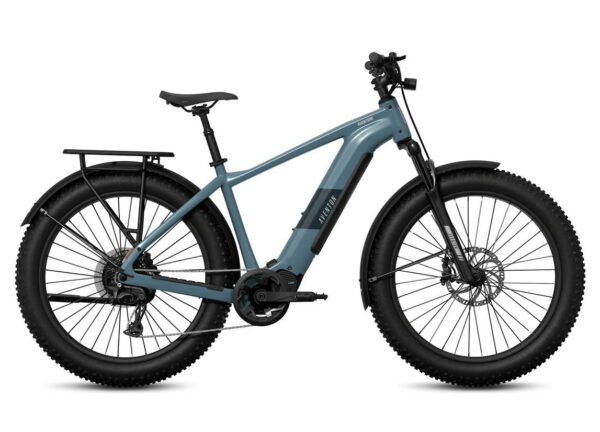

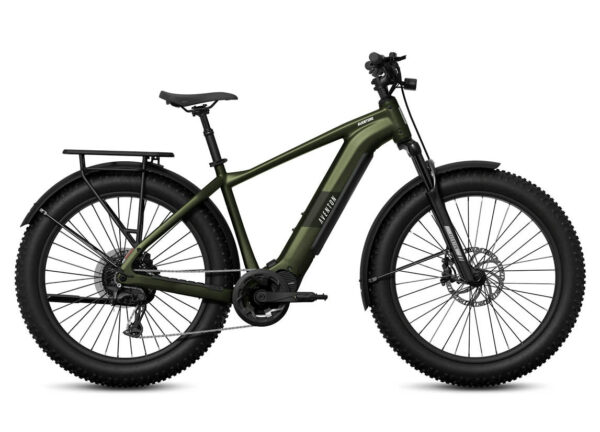

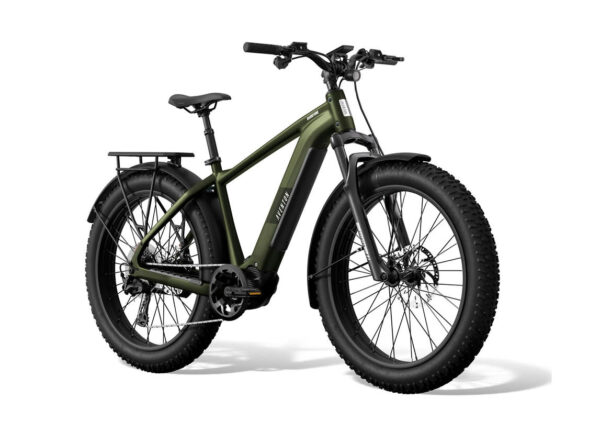

| Model | Aventure M Ebike |
| Ideal Use | All-Terrain Performance |
| Weight | 73 lbs |
| Total Weight Limit | 400 lbs |
| Rider Height | R: 5’3″ – 5’10” | L: 5’10” – 6’4″ |
| Ebike Class | Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3) |
| Range | Up to 85 Miles |
| Water Resistance | Bike – IPX6 // Motor – IPX7 |
| Battery Safety Certifications | Certified to UL 2271 |
| Safety Certifications | UL Safety Certified, UL 2849 |
Frameset
| Fork | Aventon/Zoom Suspension Fork, 80mm travel, with lockout |
| Rear Spacing | 190mm |
| Fork Spacing | 135mm |
| Frame | 6061 Aluminum |
Wheelset
| Front Wheel | 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve |
| Rear Wheel | 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve |
| Tires | Inova 26×4.0 puncture resistant |
Ebike System

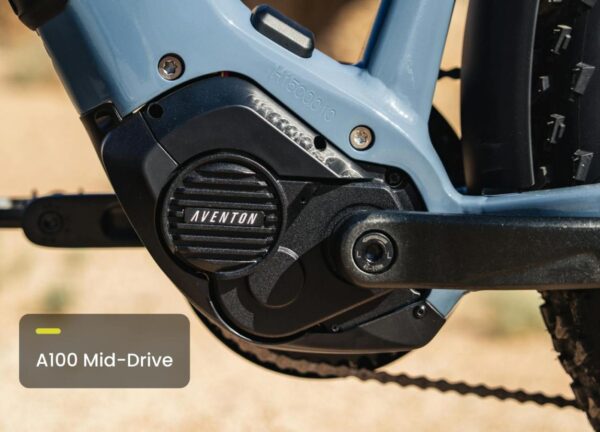

| Motor | Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating |
| Motor Torque | 100Nm |
| Display | Aventon BC280 |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Battery Weight | 8.7lbs |
| Controller | Integrated in Motor |
| Throttle | Aftermarket Throttle Available for Purchase |
| Sensors | Double Sided Torque Sensor Integrated in Motor |
| Charger | 36V Output: 42V/ 4A |
| Charging Time (0% to 100%) | 5 hours |
| Lights | Integrated front and rear running lights (no brake lights) |
Brakes
| Front Brake | SRAM DB4 Hydraulic Disc Brakes w/o cutoff |
| Rear Brake | SRAM DB4 Hydraulic Disc Brakes w/o cutoff |
| Front Brake Rotor | Sram G2 200mm 6-Bolt |
| Rear Brake Rotor | Sram G2 200mm 6-Bolt |

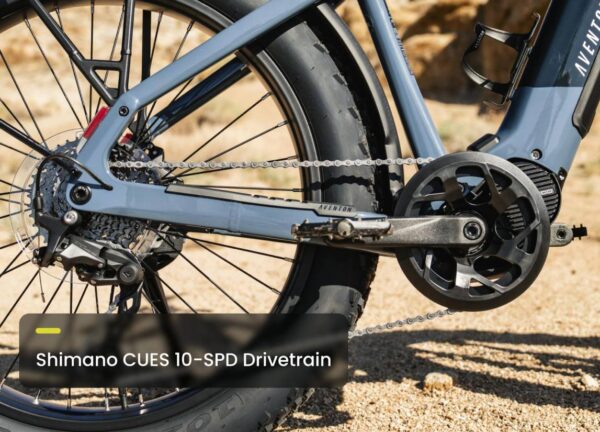

Drivetrain
| Rear Derailleur | Shimano Cues 10-Speed |
| Shifter | E-Shifter |
| Chain | 9/10/11 Speed 124L |
| Cassette | Shimano Cues 10-Speed 11-39T |
| Chainring | 44T |
| Chainring BCD | N/A |
| Crankset | Aventon 170mm ISIS Splined |
| Bottom Bracket | N/A |
| Pedals | 9/16″ Alloy Platform |
Cockpit
| Saddle | Aventon Saddle |
| Seatpost | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
| Seatpost Clamp | 34.9mm |
| Handlebars | Aluminum 31.8, 720mm |
| Grips | Aventon Lock on grips |
| Headset | Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs |
Included Accessories
| Kickstand | Included, rear mount |
| Rear Rack | Included |
| Fenders | Included |
