TOP SPEED
20 MPH
RANGE
UP-TO 90 miles
MOTOR POWER
750W Peak
PAYLOAD
300 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year

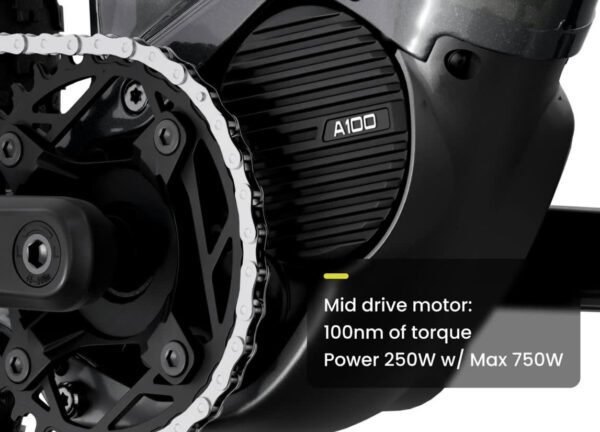

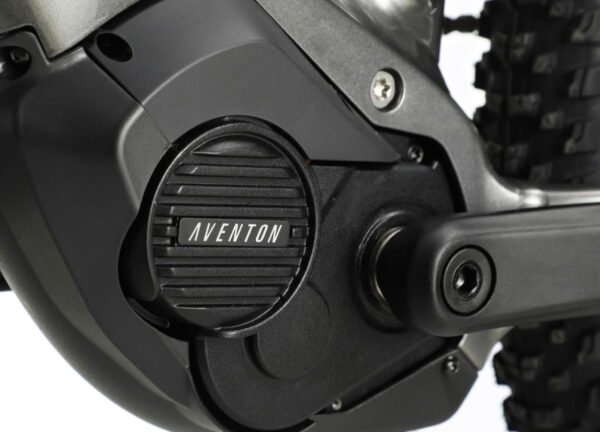

Mid-Drive Motor & Battery
Aventon’s mid-drive motor is designed to give riders full control over their riding experience. With its 250 watts of sustained power, 750 watts at peak power, 36V battery and adjustable three pedal assist levels, you can customize your ride to your liking for trail and daily commutes.
100 Nm of Torque
Ramblas’ A100 motor produces a smoother, more natural feel when accelerating and decelerating. Its 100 Nm of torque helps you quickly reach peak power when needed, then gradually tapers off to a more consistent output.
Uphill Start Assist
When the best views are halfway up the hill, Uphill Start Assist is there to keep you climbing when you’re ready to start back up. Enjoy increased torque and power output during the first initial crank rotation when attempting to mount the bike and start pedaling on an incline.
Ride Tune
Ramblas’ Ride Tune enables motor customization via the Aventon app for a more personalized riding experience. Fine-tune Assistance, Max Torque, and Pedal Response, so you can optimize the full potential of your Ramblas.

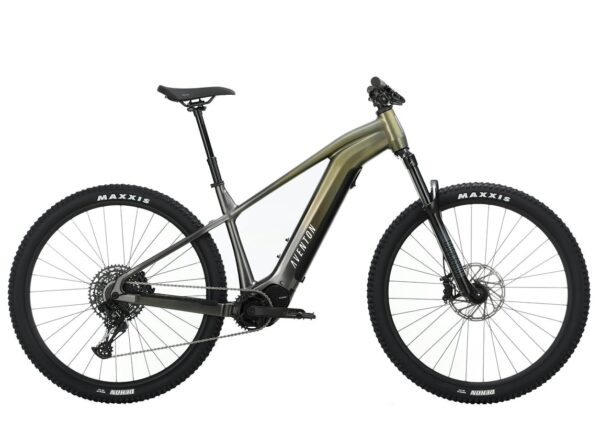

Geometry
| Frame Size | Small | Medium | Large | Extra Large |
|---|---|---|---|---|
| Wheel Size | 27.5″ | 29″ | 29″ | 29″ |
| Seat Tube Length | 380mm | 410mm | 450mm | 490mm |
| Top Tube Length Horizontal | 594.5mm | 616.5mm | 642mm | 668mm |
| Bottom Bracket Drop | 55mm | 55mm | 55mm | 55mm |
| Head Tube Length | 125mm | 125mm | 135mm | 135mm |
| Head Tube Angle | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Rear Chainstay Length | 465mm | 465mm | 465mm | 465mm |
| Front Wheel Center | 720mm | 744mm | 770.5mm | 796mm |
| Wheelbase | 1179.5mm | 1203mm | 1230mm | 1256mm |
| Reach | 415mm | 432.5mm | 455mm | 481mm |
| Stack Height | 640mm | 656.5mm | 665mm | 665mm |
| Fork Length | 530mm | 547mm | 547mm | 547mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Trail | 108.6mm | 117mm | 117mm | 117mm |
| Standover | 683mm | 702mm | 712mm | 719.5mm |
| Rider Height (Range) | 155 – 165 cm 5’1″ – 5’5″ | 165 – 176 cm 5’5″ – 5’9″ | 177 – 188 cm 5’10” – 6’2″ | 188 – 195 cm 6’2″ – 6’5″ |
Specs & Details
General Info
| Model | Ramblas Ebike |
| Weight | 54 lbs, size large, w/o pedals |
| Total Weight Limit | 300 lbs |
| Ideal Use | Mountain Biking, Urban Riding |
| Range | Up to 90 miles |
| Pedal Assist | 3 Levels (with Ride Tune Customization) |
| Rider Height | 5’1″ – 6’5″ |
| Folding | No |
| Safety Certifications | UL and TUV Safety Certified UL 2849 / UL 2271 |
| Water Resistance | Bike – IPX6 // Motor – IPX7 |
Frameset
| Fork | BOREALIS: RockShox 35 Silver R 130mm travel. Coil, 44mm offset, 15×110 QR axle, 1.5″ tapered steerer tube. AURORA: Rockshox Psylo Silver R, 35mm Stanchions, coil, 44mm offset, 15x110mm BOOST, 1.5″ tapered steerer tube, Rebound adjust |
| Frame | 6061 Single-Butted Aluminum Alloy |
| Frame Style | Step-Over |
Wheelset
| Hubs | 15×110 32H Front, 12×148 32H Rear |
| Rim | Double Wall Aluminum 32h Front & Rear |
| Spokes | Black Stainless 13 Gauge |
| Tires | S: Maxxis Rekon 27.5×2.4, M/L/XL: Maxxis Rekon 29×2.4 |
| Tubes | Butyl Rubber, Presta Valve |
Ebike System
| Battery | Aventon 708 Wh, 36V LG 21700 cells |
| Charger | 42V 4A charger |
| Display | LCD Smart “Easy Read” |
| Motor | Aventon a100 mid-drive, 36V, 250W sustained, 750W peak, 100Nm torque, IP67 rating |
| Speed | Class 1 |
Brakes
| Rear Brake Rotor | Sram 180mm 6 bolt |
| Front Brake Rotor | Sram 200mm 6 bolt |
| Brakes | Sram DB8 mineral 4 piston hydraulic disc brakes |
Drivetrain
| Rear Derailleur | Sram NX Eagle 1×12 |
| Pedals | 9/16″ Alloy Platform |
| Chainring | Sram NX 34t |
| Cassette | Sram SX Eagle 1×12 11-50t |
| Shift Lever | Sram NX Eagle 1×12 single click |

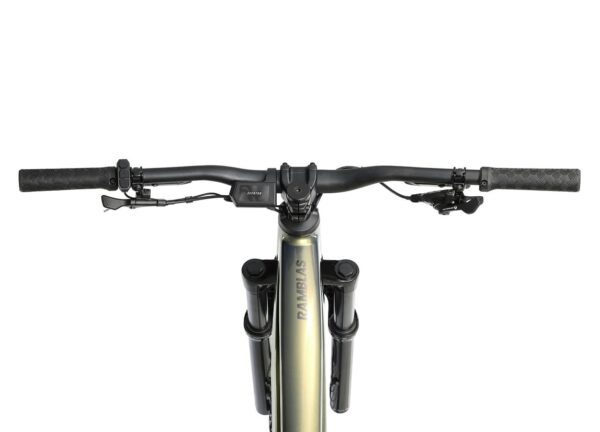

Cockpit

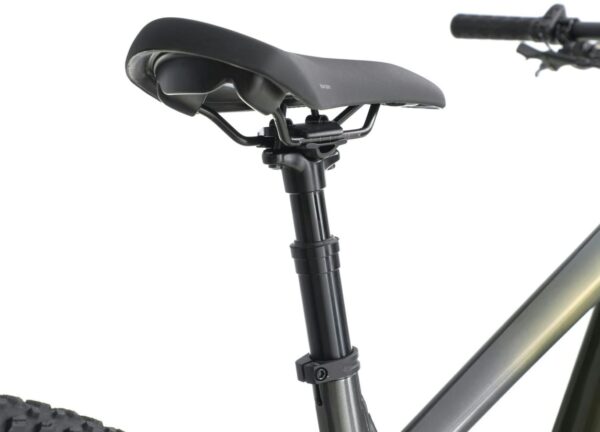

| Seatpost | 150mm travel (M-XL), 125mm travel (S), 31.6mm Ø, 395mm length |
| Handlebars | 35mm, 9° rise, 720mm width (S), 760mm width (M-XL) |
| Grips | Lock-on |
| Stem | 35mm Ø, 40mm length |
| Seatpost Clamp | 34.9mm |
Included Accessories
| Kickstand | Included in accessory box |
| Front Head Light | Included in accessory box |
| Fenders | Compatible |
Miscellaneous
| Suspension | RockShox 130mm travel |
