TOP SPEED
20 mph
RANGE
18–30 mi
MOTOR POWER
500W
PAYLOAD
220 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year
UNIQUE FRAME STRUCTURE

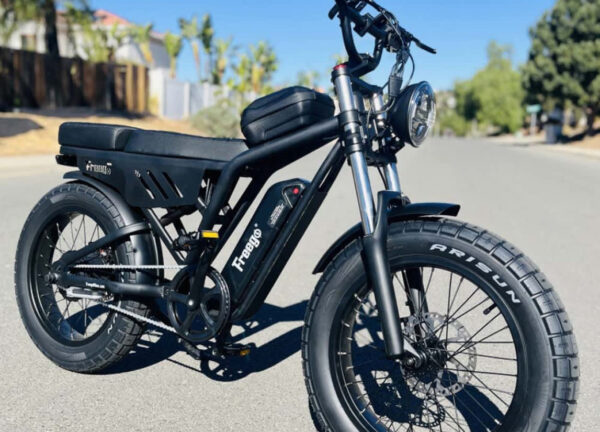

Shotgun Lite F0 features a lower frame height and a unique design tailored for petite riders and female cyclists. The frame’s shape and position ensure optimal balance and control, enhancing comfort and stability.
20 x 4″ FAT TIRES
Wider surface area of fat tires enhances stability on uneven or slippery surfaces, offering superior traction on sand, snow, or gravel. Designed for versatility, these tires excel across diverse terrains, from mountain trails to city streets, ensuring reliable control and performance.
REMOVABLE BATTERY
High battery life and is detachable, allowing riders to remove the battery for charging anytime and anywhere. Additionally, the removable battery feature makes it easier to protect it from extreme weather conditions, ensuring optimal performance and longevity.

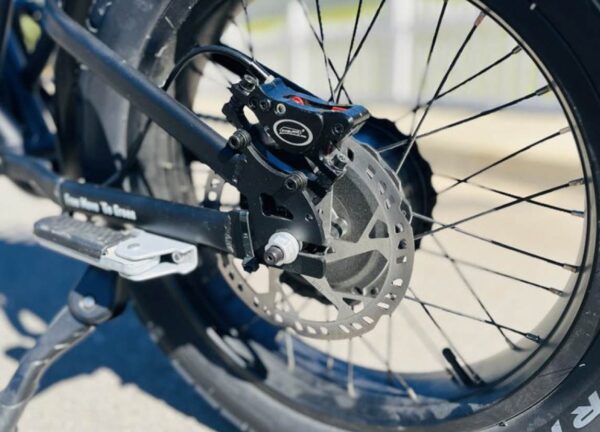

HYDRAULIC BRAKE
One of the main advantages of hydraulic brakes is their excellent stopping power. Using fluid pressure can apply more force to the braking mechanism, resulting in a faster, more controlled stop. With hydraulic brakes, riders can be confident in their ability to stop safely and efficiently, even at higher speeds.
Geometry
| Measurement | Size |
|---|---|
| A. Handlebar Length | 26.4″ / 67 cm |
| B. Total Length | 67.3″ / 171 cm |
| C. Total Height | 45.9″ / 116.5 cm |
| D. Seat Length | 28.7″ / 73 cm |
| E. Top Tube Length | 38.9″ / 99 cm |
| F. Tire Width | 4″ / 10 cm |
| G. Wheel Diameter | 21.7″ / 55 cm |
| H. Seat Height | 28.7″ / 73 cm |
| I. Wheelbase | 44.1″ / 112 cm |
| J. Seat Height from Tire | 7.7″ / 19.5 cm |
| K. Head Tube Length | 22.3″ / 56.7 cm |
| L. Battery Length | 13.8″ / 35 cm |
Specification
| Motor Power (Nominal) | 500 W Rear Hub |
| Battery | 48 V, 12.5 Ah (600 Wh) |
| Riding Range | 18–30 mi (28–48 km) |
| Top Speed | 20 MPH |
| Frame | High-strength Steel Pipe |

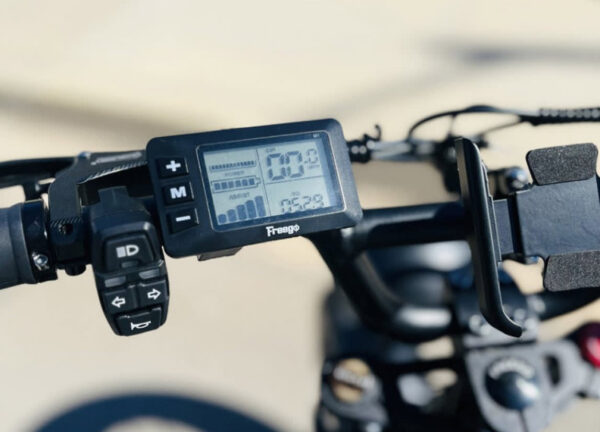

| Display | LCD Display |
| Max Loading | 220 lbs (100 kg) |
| Net Weight | 104 lbs (47 kg) |
| Charging Time | 3–5 h |
| Transmission Gears | SHIMANO 7 Speed Gears |
| Brake System | Front + Rear Hydraulic Brake |
| Wheel Size & Tires | 20 × 4″ Air-filled tires with tube |
| Suspension | Full Suspension for Front & Rear |
| Rear Brake Light | Yes |
| Charger Specification | Output: 54 V, 2 A; Input: 100–240 V, 50/60 Hz |
| Package Size | 56.7 × 14.2 × 33.9 in (144 × 36 × 86 cm) |
| Suggested Rider Height | 4’11″–5’8″ |
| E-Bike Classification | Class 2 |
