TOP SPEED
28 mph
RANGE
50 – 85 miles
MOTOR POWER
500 – 750 W
PAYLOAD
330 lb
FOLDABLE
Foldable
BRAND WARRANTY
1-year
Standard Motor & Battery
- No additional charge
- Range: Up to 50 miles
- Motor Power: 500W
Upgraded Motor & Battery
- Additional $300
- Range: Up to 85 miles
- Motor Power: 750W
Smooth Pedaling
Our proprietary in-house-designed torque sensor programming will give you smoother power distribution and a better riding experience. Not to mention a lot more efficiency and range.
Impressive Power
1310W of peak power combined with our Stealth M24 technology delivers a quiet motor that’s built for the long haul with a 48V, 17.5Ah (840Wh) lithium-ion battery certified to UL 2271. The XP4 is also certified to UL 2849.
Fun That’s Easy to See
A new detachable backlit 3.5” TFT color display with 5 new intuitive riding modes features a USB-C charge port and has an aesthetic look while offering clear and concise information.
Stops on a Dime
The XP4 comes standard with top-of-the-line 602 Hydraulic Brakes with 28% more rotor thickness, so it’s as easy to stop as it is to go, paired with aluminum brake levers.
Size Guide
| Bike Unfolded | 66″L x 18.5″W x 47″H |
| Stand Over Height | 24″ |
| Handlebar Height | 45″-48″ (adjustable) |
| Bike Folded | 37″L x 17″W x 29″H |
| Payload Capacity | Max: 330 lbs. |
| Seat to Ground | Max: 42″ / Min: 29.5″ |
| Handlebar Width | 25″ |
| Rider Height | 4’10″ – 6’3″ |
| Rear Rack | 13.5L x 6.5W (150lb capacity) |
| Handlebar Reach | 15″ – 18″ |
| Bike Weight with Battery removed | 62 lbs. |
| Battery Weight | 9 lbs. |
Specifications
| 5 Riding Modes | Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.* New simplified labels, including Eco, Tour, Sport, Sport+, & Turbo, allow riders to choose their riding experience. |
| Thumb Throttle | An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue. |
| Stealth M24 Motor | A 750W rear hub motor (1310W peak) with 85Nm of torque supplies power and speed quicker than ever before. Stealth M24 technology delivers a quieter motor experience without sacrificing power. |
| Battery | An integrated & removable 48V, 17.5Ah (840Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 85 miles on a single charge.** The XP4 is also certified to UL 2849.† Removing the battery from the frame is a breeze with the side-facing key port location. |
| New: Keyless Riding | Turn your bike on and off with the push of a button, and start riding without having the key in the battery! Keys are needed to remove the battery from the bike frame only. |
| Rear Rack | A new rear rack design integrated into the bike frame holds up to 150lbs and features bosses for mounting various accessory combinations. Add a LevelUp Rack (sold separately) on top of the rack to unlock even more accessory combinations! |
| Co-Pilot Capable | The LevelUp Rack (sold separately) can be added and has a built-in mounting window to easily install children’s seats like the Thule Maxx Yepp Seat. Buddy Seat also available (sold separately). |
| TFT LCD Display | A custom color TFT display featuring a detachable mount and a USB-C port. New intuitive drop-down menus simplify settings customization. IP-X5 rated for water resistance. |
| Tires—with Slime! | Puncture-resistant 20” x 3” tires with custom tread pattern and Slime installed help prevent flats and ensure a quiet, efficient ride. |
| Torque Sensor | Proprietary torque sensor provides smooth power distribution based on pedaling effort, allowing better control and easier high-speed riding. |

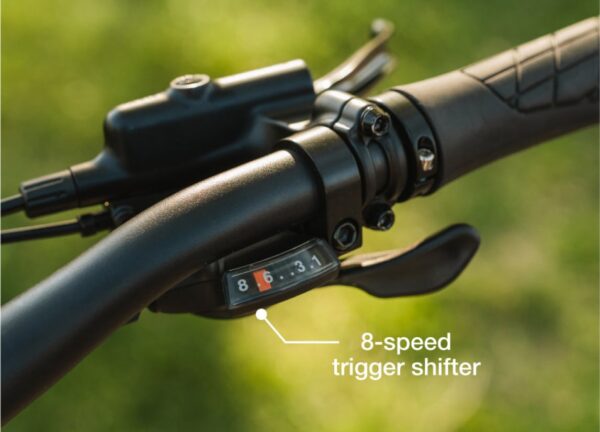

| Drivetrain | 8-speed, 11-32 tooth freewheel with Shimano Altus derailleur and below-the-bar trigger shifter for efficient, high-speed gear changes. |
| Crankset | Forged aluminum, 56-tooth custom chainring for effortless pedaling on 20-inch wheels. |
| Chain | KMC Z8 steel chain with inner plate chamfering for consistent tension and smooth shifting. |
| 602 Hydraulic Brakes | Ultimate stopping power with 602 hydraulic brakes, 180mm rotors (2.3mm thick), and ergonomic aluminum brake levers for durability. |
| Safety Lights | Integrated 90-lumen headlamp with side amber lights and a brake-activated rear light powered by the internal battery. |
| Turn Signals | Activate blinkers using the button pad to alert others during turns. |
| Suspension Fork | Shock-absorbing front fork with adjustable tension and lockout for customized comfort based on payload and weight distribution. |
| Folding Kickstand | Heavy-duty steel side-sweeping kickstand located near the chainstay for stability. |
| Fenders | Polypropylene fenders with flared tails for long-lasting protection from debris and weather. |
| Quick-Release Pedals | Custom 6000 Series Aluminum pedals with splined inserts for easy tool-free removal and improved foot grip. |
| Lock-on Grips | Ergonomic full-length grips with internal sleeves for secure placement and comfort. |
| Saddle | Sporty custom-designed saddle offering improved comfort for longer rides. |
| Adjustable Handlebar Stem | Zero-degree stem with telescoping function improves upright posture and fit across rider heights. |
| Telescoping Seat Post | Quick-release collar allows fast adjustment to preferred seat height. |

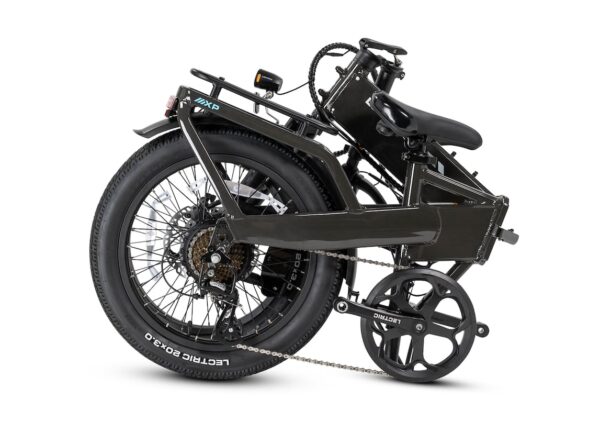

| Fully Foldable | Handlebar and frame hinges allow compact folding. Pedals and seat post are removable for transport. |
| Weight | 62 lbs without battery; battery weighs 9 lbs. |
| Easy Charging | Auxiliary charging port allows in-frame charging. Optional 5amp fast charger reduces charge time to 3.5 hours. |
| Fully Redesigned Frame | Lightweight 6000 series aluminum frame with accessory mounting points and improved aesthetics. |
| Motor Controller | 24amp internal controller is IP-X5 rated and potted for thermal and weather protection. |
| Green Packaging | Biodegradable and recyclable packaging materials. |
| Color | Tempest Grey |
| One-Minute, Tool-Free Assembly | Unfold stem, insert handlebars, attach pedals and screen—done! |
| Safety Tested | Built to ISO 4210 standards, tested in a US-based lab for durability and safety. |
| UL Certified | XP4 certified to UL 2849; battery certified to UL 2271. |
