TOP SPEED
28 mph
RANGE
60 – 120 – 170 miles
MOTOR POWER
1310 W Peak
PAYLOAD
450 lb
FOLDABLE
Not Foldable
BRAND WARRANTY
1-year
Single Battery
- No additional charge
- Range: Up to 60 miles
Dual Battery
- Additional $300
- Range: Up to 120 miles
Dual Long Range Battery
- Additional $600
- Range: Up to 170 miles
Courier 50 Suspension Fork
A custom eBike-rated dual-spring suspension front fork features 50mm of adjustable travel for a smooth and controlled ride.
Torque Sensor
A tailor-made torque sensor uses PWR+ technology – helping to manage power output based on the rider’s pedaling effort. It allows riders to reach class 3 speeds easily & with more control.
Impressive Power
1310W of peak power combined with our M24 technology delivers a quiet motor that’s built for the long haul with a 48V, 13Ah (624Wh) Lithium-Ion battery certified to UL 2271. The XPedition 2.0 is also certified to UL 2849.

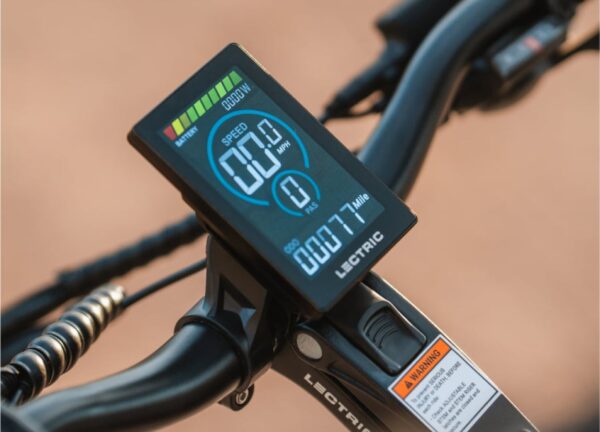

Color LCD Display
A color display featuring a USB-C port adds an aesthetic look while offering clear and concise information.
Size Guide
| Bike Unfolded | 77″L x 17″W x 46″H |
| Stand Over Height | 21″ |
| Handlebar Height | 32″-49″ (adjustable) |
| Bike Folded | 70″L x 10″W x 30″H |
| Payload Capacity | Max: 450 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Front Basket Weight 30 lbs, Max Rear Rack Weight 300 lbs. |
| Rear Rack Payload Capacity | Max: 300 lbs. |
| Rider Payload Capacity | Max: 330 lbs. |
| Seat to Ground | Max: 49” / Min: 32” |
| Handlebar Width | 25″ |
| Rider Height | 4’11” – 6’5” |
| Rear Rack | 36.7”L x 6.8”W (300lb capacity) |
| Handlebar Reach | 17” – 24.5” |
Specifications
| Pedal-Assist | Five levels of pedal-assist and a throttle delivers the speed and power to own the road as a Class 1, 2, or 3 eBike.* |
| Thumb Throttle | An ergonomic below-the-bar trigger throttle on the left hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue. |
| Motor | A 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. |
| Motor Controller | 24 amp externally mounted controller is IP-65 rated and potted for weather proofing and thermal management. |
| Battery | A removable 48V, 13Ah (624Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 60 miles on a single charge.** The XPedition is also certified to UL 2849.† |
| Smart-Draining Technology | A dual-battery system coupled with a battery isolator will drain 2 batteries at the same time allowing you to stay at higher voltage longer & reach up to 170 miles, respectively.** |

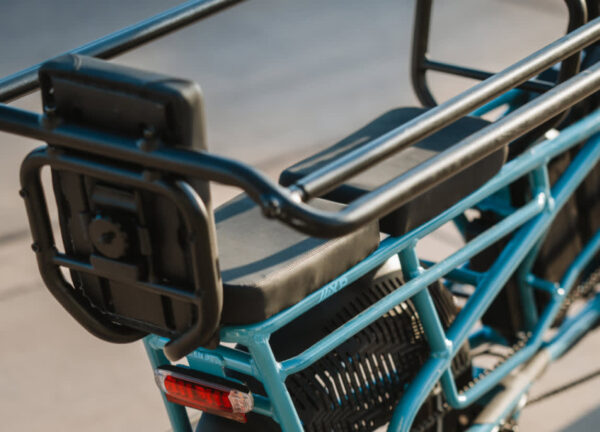

| Rear Rack | A long rear rack integrated into the bike frame holds up to 300lbs and features a specially designed bar for mounting various accessory combinations. |
| Suspension Front Fork | The Courier 50 is a custom dual-spring suspension fork with up to 50mm of travel that provides shock absorption for a smooth and comfortable ride. |
| LCD Display | A backlit color LCD display with a USB-C port provides trip and battery intelligence on the go. IP-65 rated electrical components ensure greater water and dust resistance. |
| Tires | Puncture-resistant 20” x 2.5” street tires make for a smoother ride with ease of control at hand. Slime is installed to prevent flat tires- at no additional cost. |
| Lectric PWR+™ | Lectric’s new Pedal Assist Wattage Regulation+ (PWR+) programming allows for an improved Pedal Assist experience by assisting the rider up to a certain power level for each PAS setting. |
| PAS Torque Sensor | A unique torque sensor combined with PWR+ technology helps to manage power output based on the rider’s pedaling effort. |
| Drivetrain | 11-32 tooth, 8-geared freewheel paired with a Shimano Altus derailleur and a thumb-triggered handlebar shifter. |
| Crankset | Forged aluminum, 52-tooth chainring is the perfect ratio for effortless 20-inch wheel pedaling. |
| Chain | A KMC Z8 steel chain paired with an idler pulley offers consistent tension and secure performance throughout your ride. |
| Brakes | Ultimate stopping power with hydraulic mineral oil brakes paired with 180mm rotors (2.2mm thick). |
| Safety Lights | An integrated safety system, featuring a headlamp and a brake-activated rear light powered by the internal battery. |
| Turn Signals | Simply use the left or right arrows on the display control pad to trigger a blinking cadence on one side of the rear light. |
| Folding Dual-Leg Kickstand | A sturdy dual-leg kickstand with a 15+ inch spread located near the bottom bracket ensures the most balanced position for easy loading. |
| Fenders | Polypropolene Fenders protect you and your ride from debris. Rear fender features an integrated side-pane wheel shroud to shield cargo and passengers. |
| Removable Pedals | Quick-release pedals easily detach from the bike for compact transport. |
| Lock-on Grips | Ergonomic lock-on grips add comfort so you can ride longer. Plastic sleeve inside locks the grips and allows easy removal. |
| Saddle | A custom-designed saddle compliments a sporty look while adding comfort for longer rides. |
| Dual Seat Post | An adjustable and removable seat post with two different expansion points allows riders to reach a wide range of heights. |
| Adjustable Handlebar Stem | Easily adjustable handlebar stem riser includes a quick-release lever for personal comfort. |
| Thru Axle | The front wheel features a quick-release Thru Axle system for tool-free installation and better alignment. |
| Folding Capabilities | A foldable handlebar stem and adjustable seat height allows the XPedition to slide into compact spaces. |
| Weight | Total bike weight 65lbs without batteries installed. Each XPedition battery weighs 9lbs. |
| Charging | An external battery allows charging without removal. Comes standard with 2amp charger (5-7 hrs). 5amp fast charger sold separately. |
| Hidden Cable Routing | A hollow top tube frame houses the main cables. Cables that may need service are mounted to the underside of the frame. |
| Frame | The XPedition 2.0 hydroformed aluminum frame features multiple mounting points for accessories. |
| DIN Tested & Rated | Frame and fork tested and rated to DIN 79010:2020-02.5.9.5.2 to support a 450lb maximum payload. |
| Green Packaging | Packaging components are biodegradable and easily recyclable. |
| Color | Stratus White |
| One Minute, Tool-Free Assembly | Simply attach pedals, unfold handlebar stem, and install front wheel via the quick-release thru axle. |
| Safety Certified | The Lectric XPedition 2.0 is certified to UL 2849. Battery is certified to UL 2271. |
