TOP SPEED
28 mph
RANGE
60 miles
MOTOR POWER
1310W peak
PAYLOAD
330 lb
FOLDABLE
Not Foldable
BRAND WARRANTY
1-year

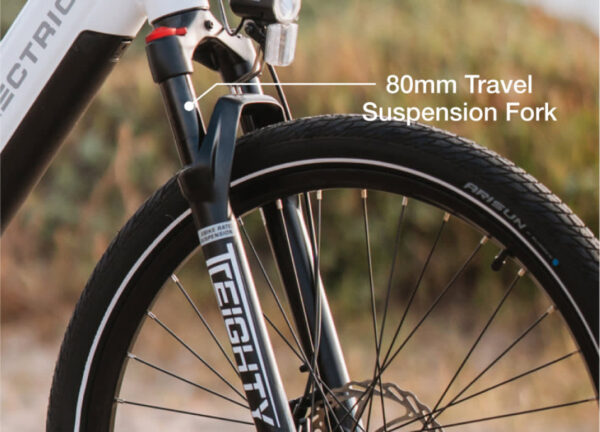

TC•Eighty Suspension Fork
A custom Lectric TC•Eighty eBike rated suspension front fork features 80mm of travel for a smooth and controlled ride.
Impressive Power
1310W of peak power combined with a 48V, 14Ah (672 Wh) Lithium-Ion battery certified to UL 2271. The XPress is also certified to UL 2849.
Torque Sensor
A tailor-made torque sensor uses PWR+ technology – helping to manage power output based on the rider’s pedaling effort. It allows riders to reach class 3 speeds easily & with more control.

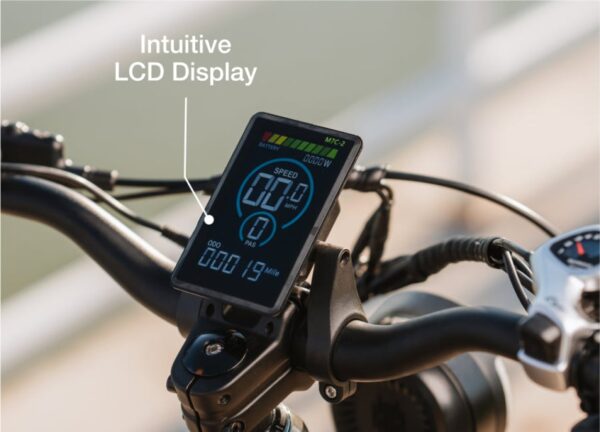

Color LCD Display
An all-new color display featuring a USB-A port adds an aesthetic look while offering clear and concise information.
Size Guide
| Bike Dimensions | 72″L x 17″W x 43″H |
| Bike Dimensions with Front Tire removed | 59″L x 10″W x 31″H |
| Stand Over Height | 18.5″ |
| Handlebar Height | 44” – 47” |
| Bike Weight | 50 lbs w/o battery. |
| Bike Weight with Front Tire removed | 53 lbs. |
| Payload Capacity | Max: 330 lbs. Never exceed the payload capacity. Distribute weight within the guidelines: Max Rider weight 330 lbs, Max Rear Rack Weight 30 lbs. |
| Rider Payload Capacity | Max: 330 lbs. |
| Seat to Ground | Min: 33” / Max: 45” |
| Handlebar Width | 26″ |
| Rider Height | 5’2” – 6’3” |
| Handlebar Reach | 19.5” – 22.5” |
Specifications
| Pedal-Assist | Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike. |
| Thumb Throttle | An ergonomic below-the-bar trigger throttle designed for your thumb is easily engaged while simultaneously eliminating joint fatigue. |
| Motor Controller | A 24 amp controller swiftly distributes power to the motor. |
| Motor | 750W rear hub-motor (1310W Peak) with 85Nm of torque delivers power and speed quicker than ever before. |

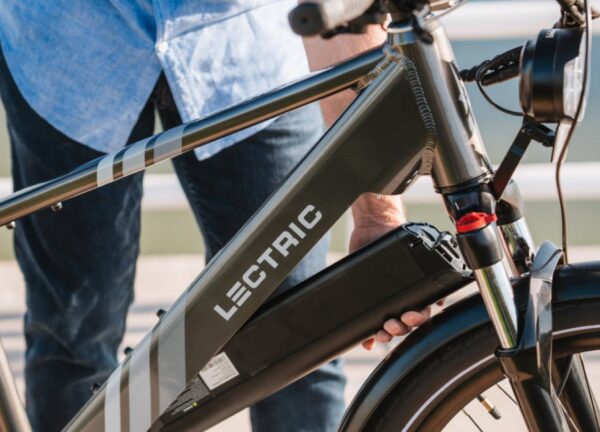

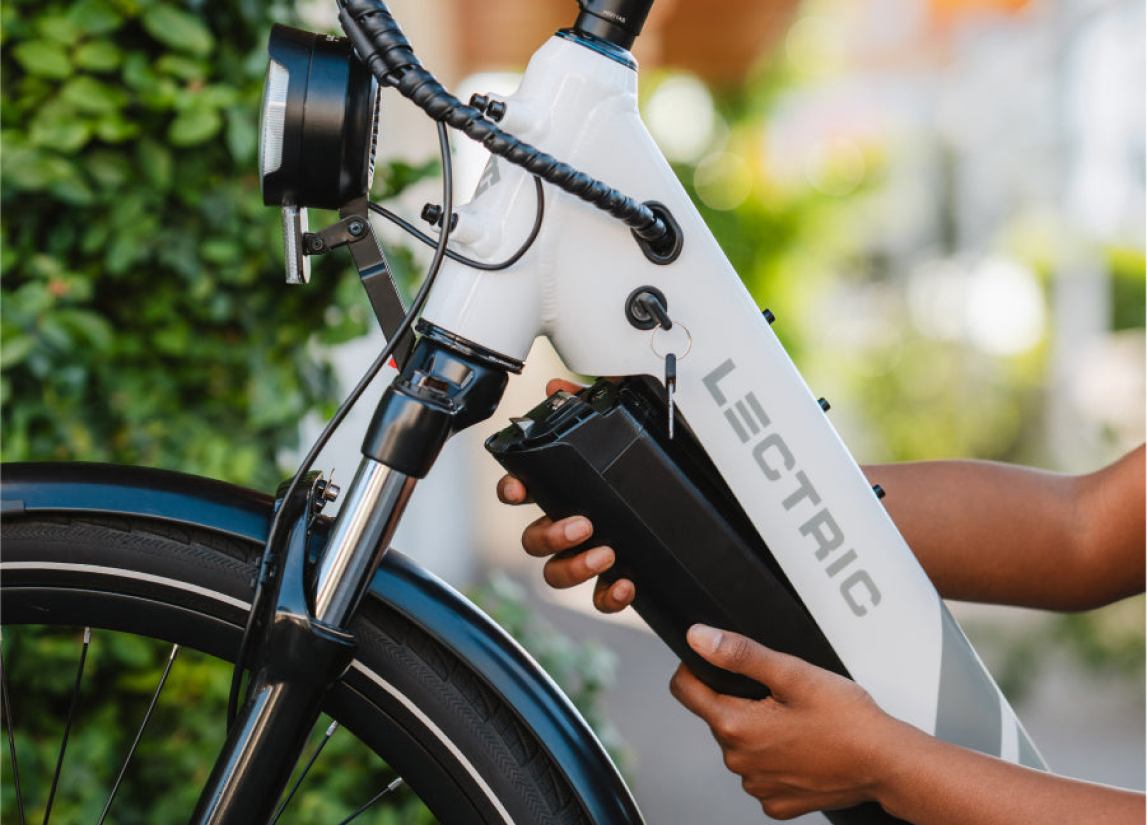

| Semi-Integrated Battery | Removable 48V, 14Ah (672 Wh) lithium-ion battery certified to UL 2271. Frame-integrated and UL 2849 certified. |
| City Tires | Puncture-resistant 27.5” x 2.1” slick tires with Slime installed to prevent flats at no additional cost. |
| Suspension Front Fork | Adjustable TC•Eighty suspension fork with up to 80mm of travel for smooth ride comfort. |
| Brakes | Hydraulic mineral oil brakes with 180mm rotors (1.8mm thick) ensure strong stopping power in any condition. |
| Lectric PWR+™ | Pedal Assist Wattage Regulation+ helps regulate power at each PAS setting for an enhanced riding experience. |
| PAS Torque Sensor | Torque sensor combined with PWR+ manages output based on pedaling effort, offering better speed and control. |
| Drivetrain | 11-28 tooth, 7-speed freewheel with Shimano derailleur and thumb shifter for easy gear changes. |
| Crankset | Forged aluminum, 46-tooth ProWheel chainring optimized for 27.5-inch wheels. |
| Chain | KMC Z7 steel chain ensures consistent tension and performance. |
| LCD Display | Backlit color LCD with USB-A port; IP-65 rated for water and dust resistance. |
| Safety Lights | Integrated battery-powered headlamp and taillight for enhanced visibility at all times. |
| Charging | Top battery port for easy charging with a 2A charger (5–7 hour charge time). |
| Telescoping Seat Post | Adjustable and removable seat post for comfortable height flexibility. |
| Adjustable Handlebar Stem | Step-Thru model includes adjustable stem riser with quick-release lever. |
| Thru Axle | Tool-free Thru Axle front wheel system for better alignment and easy transport. |
| Removable Pedals | Quick-release pedals for compact and easy bike transportation. |
| Grips | Full-length ergonomic soft grips, customizable for comfort. |
| Saddle | Custom-designed sporty saddle with added comfort for long rides. |
| Kickstand | Heavy-duty side-sweeping kickstand near chain stay for stability. |
| Hidden Cable Routing | Cables routed through the down tube for clean look and protection. |

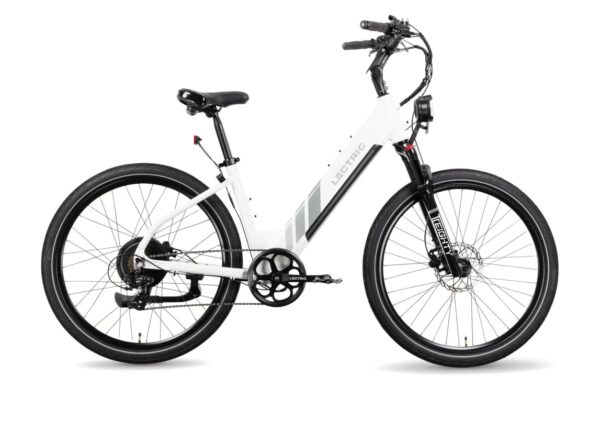

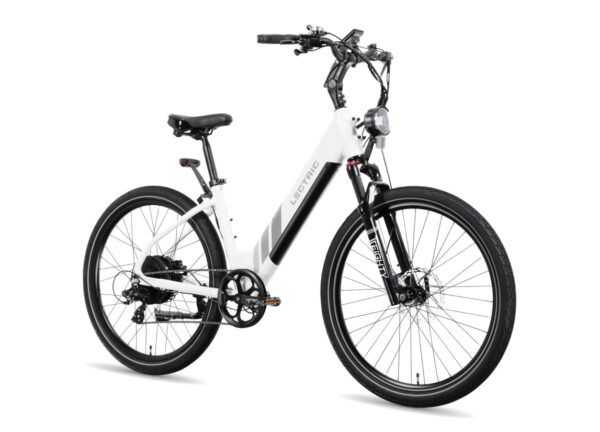

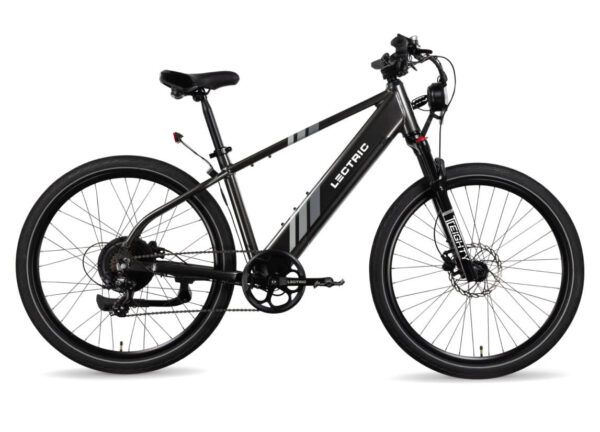

| Frame | Available in High-Step and Step-Thru frame styles for rider preference. |
| Bike Weight | 50 lbs total; battery weighs 8 lbs and is removable. |
| Green Packaging | Biodegradable and recyclable packaging materials. |
| Assembly | One-minute, tool-free assembly with quick-release pedals and thru axle. |
| Safety Certification | Certified to UL 2849; battery certified to UL 2271. |
