TOP SPEED
25 mph
RANGE
UP-TO 80 miles
MOTOR POWER
750W Peak
PAYLOAD
250 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year
Superior Frame Craftsmanship
Using EPS molding technology, the carbon fiber frame achieves a smooth, seamless interior, eliminating stress points and enhancing strength. The result is a lighter, stronger, more reliable, and precisely constructed frame, crafted to the same high standards as best race bikes in the world.
Customizable Smart Assist
With a torque sensor and app-customizable assist ratios, this eBike offers a personalized, natural ride. The torque sensor provides smooth, responsive power based on pedaling effort, while the app fine-tunes assist for optimal battery efficiency and control in various conditions.
High-Performance Motor
Featuring a 750-watt peak power and 45 Nm rear hub motor, the 1 Pro delivers responsive performance equivalent to a 65 Nm mid-drive motor. Lightweight, quiet, and quick to respond with low maintenance costs, it’s power and convenient for urban and light off-road riding.
Gear-Optimized Extended Range
By finely tuning the 4 levels of pedal assist and the Shimano 8-speed rear derailleur, we optimize power output and leverage the wide gear ratios to enhance battery efficiency and extend the range to an impressive 80 miles on a single charge.
Geometry
| Frame Size | Small | Medium | Large |
|---|---|---|---|
| Fit for | 5’3’’~5’9’’ | 5’7’’~6’1’’ | 5’11’’~6’5’’ |
| A. Standover height | 779 mm | 804 mm | 833 mm |
| B. Adjustable seat range | 60 mm | 60 mm | 60 mm |
| C. Handlebar grips height | 995-1025 mm | 1011-1041 mm | 1023-1053 mm |
| D. Seat tube length | 421 mm | 463 mm | 498 mm |
| E. Wheelbase | 1065 mm | 1093 mm | 1122 mm |
| F. Overall length | 1766 mm | 1795 mm | 1824 mm |
| G. Wheel diameter | 702 mm | 702 mm | 702 mm |
| H. Top tube length (effective) | 594 mm | 618 mm | 653 mm |
| I. Head tube length | 152 mm | 170 mm | 180 mm |
| J. Headset height | 90-120 mm | 90-120 mm | 90-120 mm |
Specs & Details
General Info

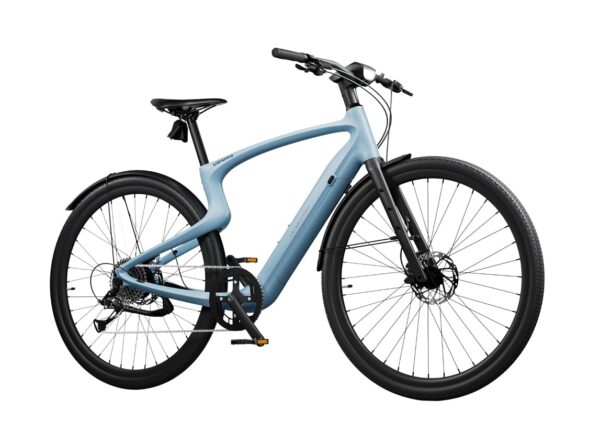

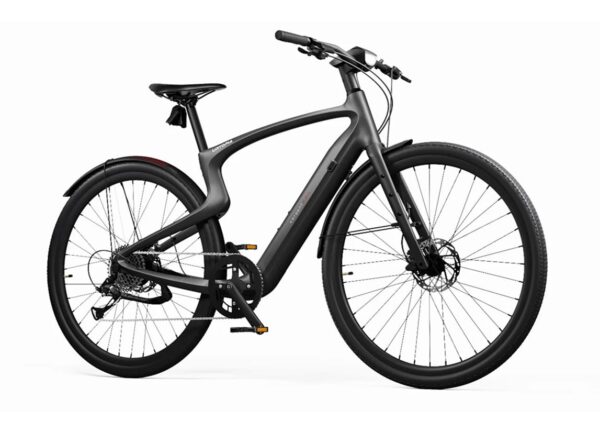

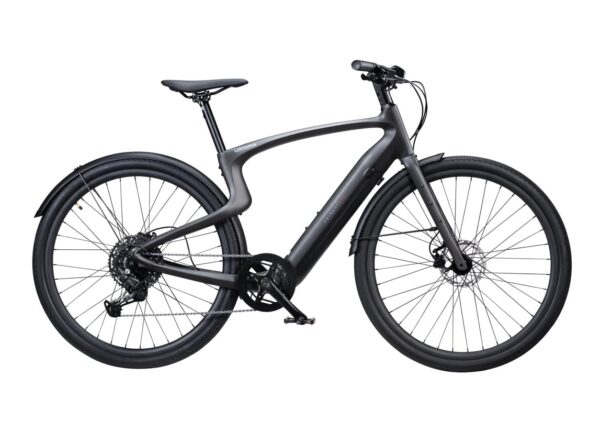

| Model | Carbon 1 Pro Lightweight E-bike |

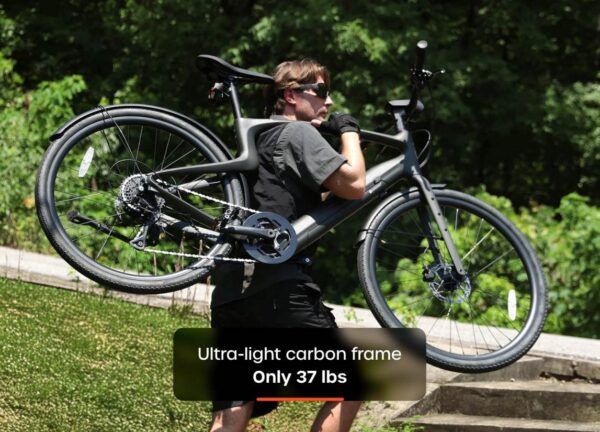

| Net Weight | 37 lbs w/o accessories |
| Material | Carbon fiber (frame, fork) |
| Range | Up to 80 miles* |
| Top Speed | 25 mph |
| Total Weight Limit | 240 lbs |
| Rider Height | 5’3” – 6’5” |
| Water Resistance | IP65 |
Ebike System
| Motor | 750W (peak) rear hub, 60Nm |

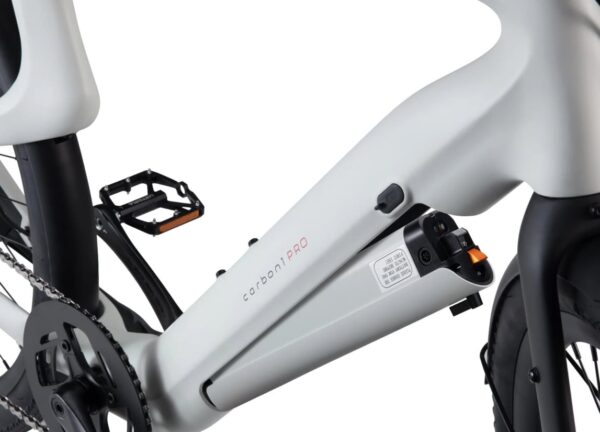

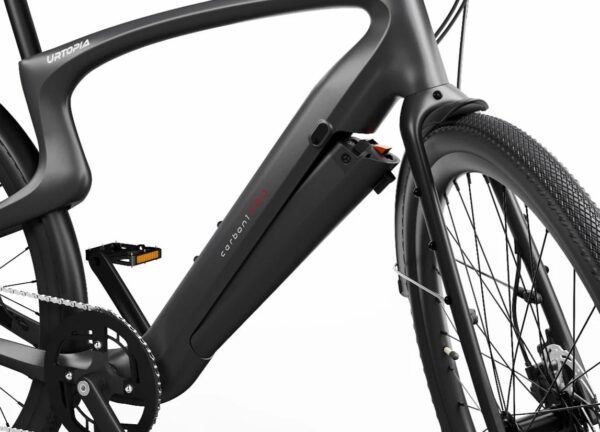

| Battery | 352.8Wh Samsung Li-ion, certified to UL-2271, removable |
| Pedal Assist | 4 levels |
| Charger | 2.5H fast charger |
| Display | LED dot-matrix (Anti-glare) |
| Sensors | Torque sensor, accelerometer, gyroscope |
| Lights | Front: Integrated StVZO headlight; Rear: StVZO rear light |
Drivetrain
| Chainrings | 44T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 11-40T, 8 Speed |
| Chain | Shimano 8 speed |
| Rear Derailleur | Shimano 8 speed |
| Shift Lever | 8 Speed Trigger |
| Pedals | 9/16” Alloy Platform |
Cockpit

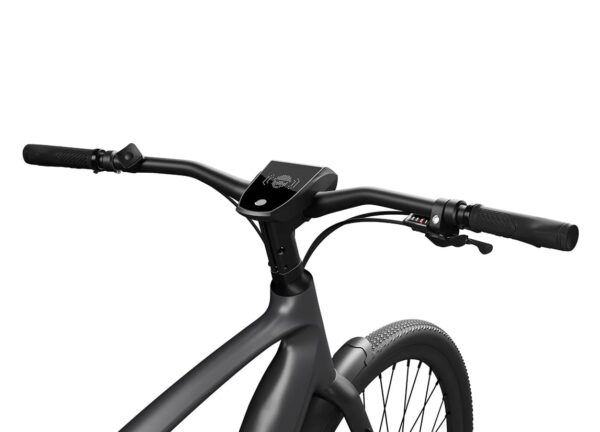

| Handlebar | Urtopia Smartbar, aluminum alloy, Φ28.6mm, 720mm width, adjustable height 0/15/30mm, haptic interaction, IP65 |
| Grips | Durable ergonomic grips, lockable |
| Seat Post | Aluminum Alloy, φ31.6mm, 100mm (M&L), 80mm (S) |
Smartbar
| Smartbox | On-board navigation, fingerprint unlock, AI assistant, voice control, bluetooth speaker, OTA update |
| Theft Defenses | Movement alarm, Electronic Fence, Find My Bike, Beep |
| Connectivity | eSIM with 4G, GPS, Bluetooth |
| eSIM/Connect Service | Renewal via Urtopia App |
| App | Urtopia (iOS & Android) |
