TOP SPEED
20 mph
RANGE
UP-TO 40 miles
MOTOR POWER
500W Peak
PAYLOAD
220 lbs
FOLDABLE
Foldable
BRAND WARRANTY
2-year

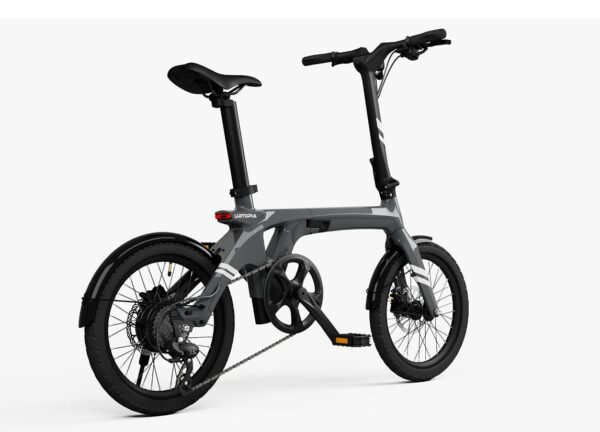

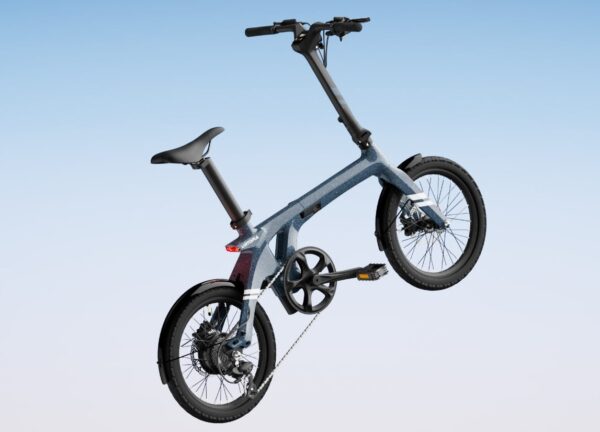

Innovative Carbon Frame
The Fold 1 features a lightweight carbon fiber frame, weighing just 29 lbs, designed for both strength and rigidity. Its folding frame has a sleek, modern design with an integrated tail light, and the folding mechanism ensures a smooth, seamless transition.
Carbon Ergonomic Handlebar
Made from carbon fiber, the handlebar blends perfectly with the bike’s design. Its sleek, ergonomic shape focuses on the built-in large screen and easy-to-use control buttons, making the bike more agile and handling smoother.

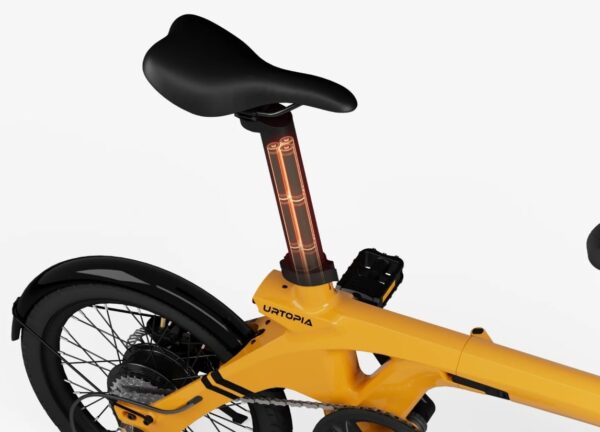

Removable seat post battery
A design that doesn’t compromise the bike’s aesthetics, the seat post doubles as a removable battery. Simply fold the bike, place it in your car trunk, and take the lightweight seat post home for charging. Enjoy a convenient, easy lifestyle.
Smart Assist
With a torque sensor, this eBike offers a personalized, natural ride. The torque sensor provides smooth, responsive power based on pedaling effort, while the app fine-tunes assist for optimal battery efficiency and control in various conditions.
Geometry
| Frame Size | One Size |
|---|---|
| A. Adjustable seat range | 220 mm |
| B. Highest point of the seat post | 1020 mm |
| C. Overall length | 1480 mm |
| D. Handlebar grips height | 1090 mm |
| E. Headset height | 400 mm |
| F. Seat tube length | 310 mm |
| G. Wheel diameter | 450 mm |
| H. Wheelbase | 1000 mm |
| I. Height after folding | 680 mm |
| J. Overall length after folding | 800 mm |
| K. Standover height | 550 mm |
Specs & Details
General Info
| Model | Carbon Folding E-Bike |
| Net Weight | 29 lbs |
| Material | Carbon fiber (frame, fork) |
| Range | 40 miles* |
| Top Speed | 20 mph |
| Total Weight Limit | 220 lbs |
| Rider Height | 5’1’’ – 6’1’’ |
| Water Resistance | IP65 |
Ebike System
| Motor | Peak 500W hub motor, 42Nm |
| Battery | 252Wh seat post battery, certified to UL-2271, removable |
| Pedal Assist | 5 levels |
| Charger | 3H fast charger |
| Display | Color display |
| Sensors | Torque sensor |
| Headlights | External headlights 160LM |
| Rear Lights | Integrated rear lights |
Drivetrain
| Chainrings | 53T |
| Cassette | 11-32T, 8 Speed |
| Chain | KMC Z7 |
| Rear Derailleur | Shimano Altus 8-Speed |
| Shift Lever | 8 Speed Trigger |
