TOP SPEED
20+ mph
RANGE
UP-TO 70 miles
MOTOR POWER
1500W Peak
PAYLOAD
330 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year

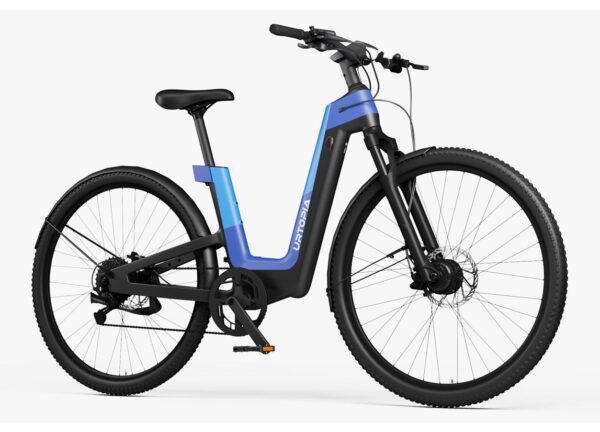

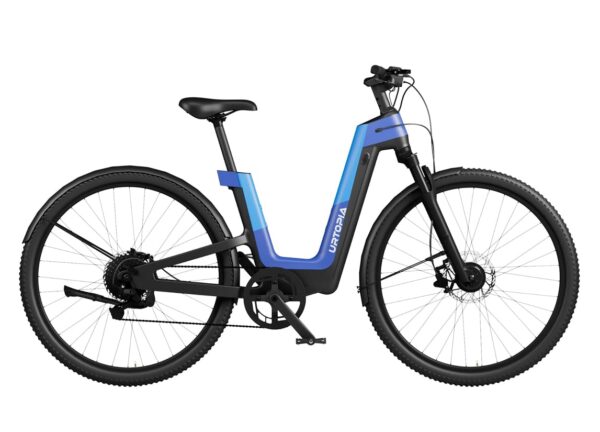

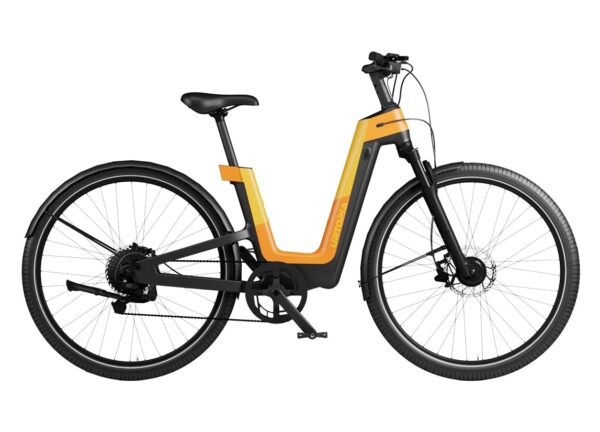

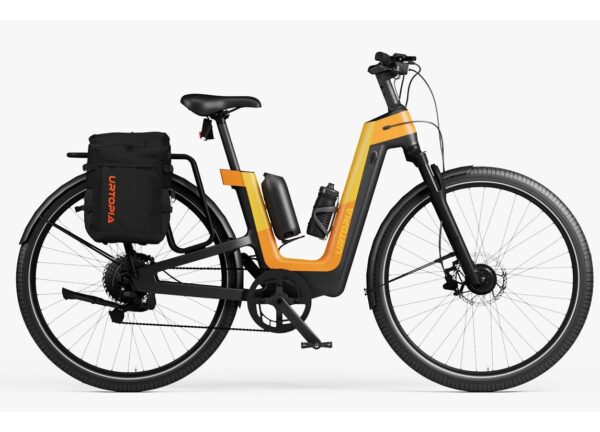

Innovative Carbon Step-thru
The Fusion GT features a lightweight T1000 carbon fiber frame, engineered for optimal rigidity and strength. The deep step-through design ensures easy access and a comfortable ride for all ages and abilities.

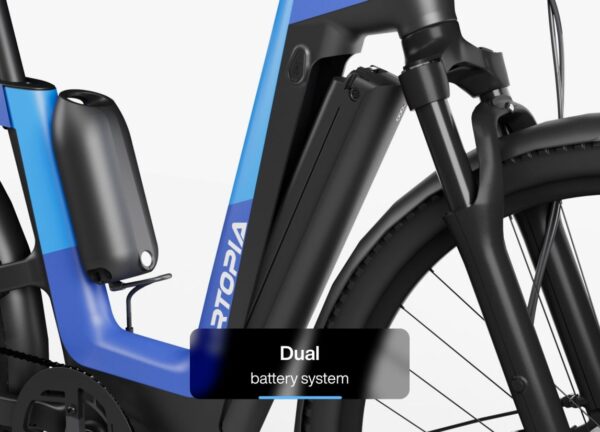

Unique Dual Battery System
Featuring an innovative dual battery system with a 900 Wh battery for up to 120 miles. This distinctive setup delivers outstanding range and flexibility, redefining long-distance riding.
Customizable Dual Motor
Dual motor provides up to 1500W peak power and features customizable assist settings, allowing you to adjust power levels for different terrains. This integration ensures a highly personalized riding experience.
Comfort-Oriented e-SUV
The ergonomic geometry provides an upright riding position to reduce long ride strain. With adjustable handlebar (up to 30 mm) and a 60 mm front suspension fork, riders experience enhanced comfort and smoother rides over various terrains.
Geometry
| Frame Size | One Size |
|---|---|
| Recomm. rider height | 5’3’’ – 6’3’’ |
| A. Adjustable seat range | 140 mm |
| B. Handlebar grips height | 1085-1115 mm |
| C. Seat tube length | 485 mm |
| D. Wheelbase | 1205 mm |
| E. Overall length | 1935 mm |
| F. Wheel diameter | 730 mm |
| G. Top tube length (effective) | 633 mm |
| H. Head tube length | 144 mm |
| I. Headset height | 90-120 mm |
| J. Standover height | 470 mm |
Specs & Details
General Info
| Model | Carbon Fusion Lightweight E-SUV |
| Net Weight | 55 lbs |
| Material | Carbon fiber frame |
| Range | Up to 70 miles (Extended to 120 miles with dual battery)* |
| Top Speed | 20mph by default, 28mph upon unlock |
| Total Weight Limit | 330 lbs |
| Rider Height | 5’3’’ – 6’3’’ |
| Water Resistance | IP65 |
Ebike System
| Motor | 1500W (peak) dual motor, 80Nm |
| Battery | 529.2Wh seat post battery, UL-2271 certified, removable |
| Pedal Assist | 4 levels |
| Throttle | Yes (up to 20mph) |
| Charger | 3.5H fast charger |
| Display | LED dot-matrix (Anti-glare) |
| Sensors | Torque sensor, accelerometer, gyroscope |
| Lights | Front: Integrated StVZO headlight | Rear: StVZO rear light (Not ARES lights) |
Drivetrain
| Chainrings | 44T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 11-40T, 8 Speed |
| Chain | YBN S8e, Silver |
| Rear Derailleur | Shimano ACERA 8-Speed |
| Shift Lever | 8 Speed Trigger |
| Pedals | 9/16” Alloy Platform |
Cockpit & Smart Features

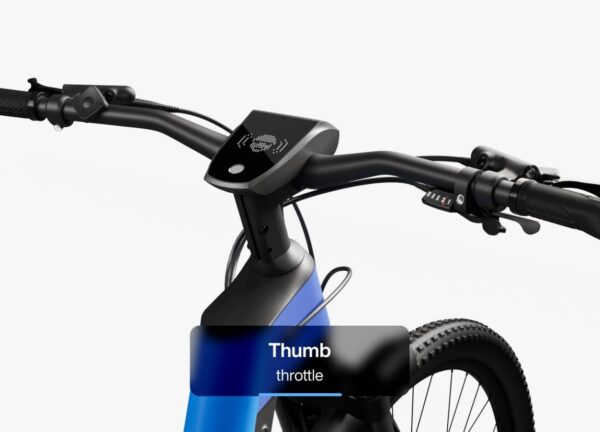

| Handlebar | Urtopia Smartbar, Aluminum alloy, Φ28.6mm, 720mm width, adjustable height 0/15/30mm, haptic interaction, IP65 |
| Fork | ZOOM 188NS AMS 700C suspension fork, 60mm travel |
| Grips | Durable ergonomic grips, lockable |
| Seat Post | Aluminum Alloy, φ31.6mm, 100mm (M & L), 80mm (S) |
| Smartbox | On-board navigation, fingerprint unlock, AI assistant, voice control, Bluetooth speaker, OTA update (wireless firmware update) |
| Theft Defenses | Movement alarm, Electronic Fence, Find My Bike (live GPS tracking), Beep |
| Connectivity | eSIM with 4G, GPS, Bluetooth |
| eSIM/Connect Service | Renewal via Urtopia App |
| App | Urtopia (iOS & Android) |
