TOP SPEED
20+ mph
RANGE
UP-TO 75 miles
MOTOR POWER
1000W Peak
PAYLOAD
330 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year

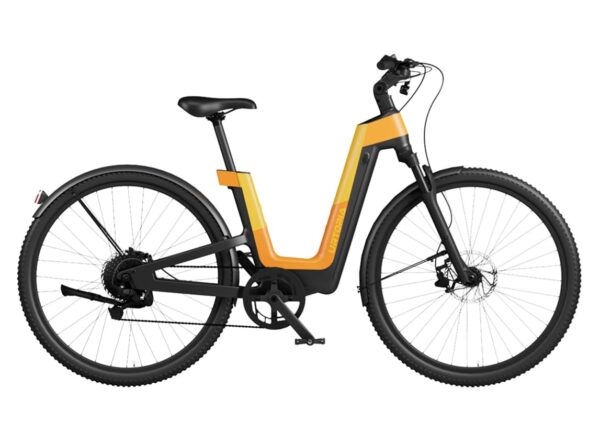

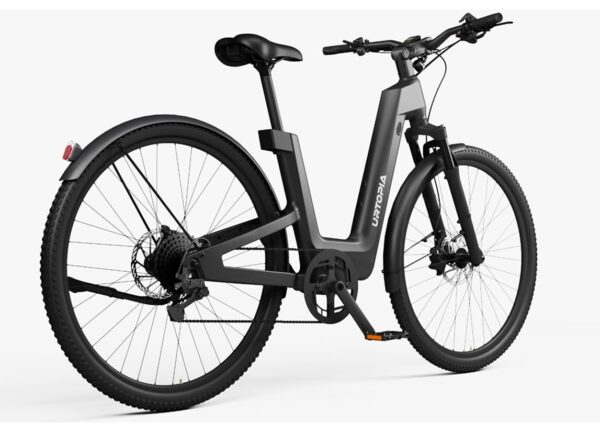

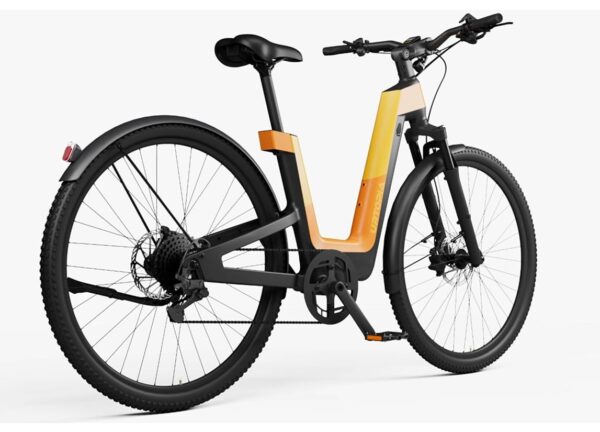

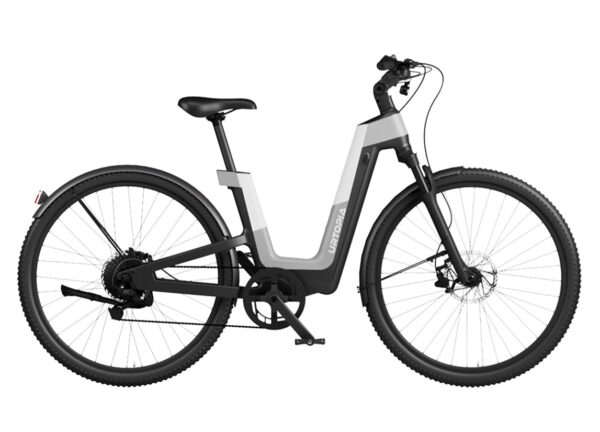

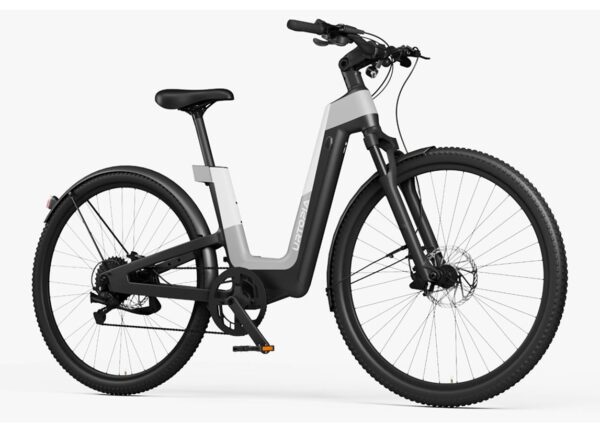

Lightweight Step-Through Carbon Frame
Engineered with a full carbon fiber build, the step-through design ensures easy mounting and a more agile, comfortable ride—perfect for urban streets and open trails alike.

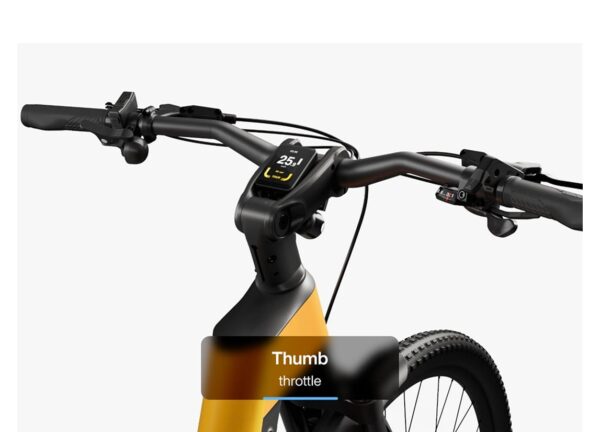

Thumb Throttle for Quick Power
Get instant acceleration with a responsive thumb throttle. Perfect for stop-and-go traffic or when you need a boost without pedaling.
Natural Boost with Torque Sensor
The advanced torque sensor delivers smooth, intuitive power that responds to your pedaling. It feels like riding a regular bike—just with superpowers.

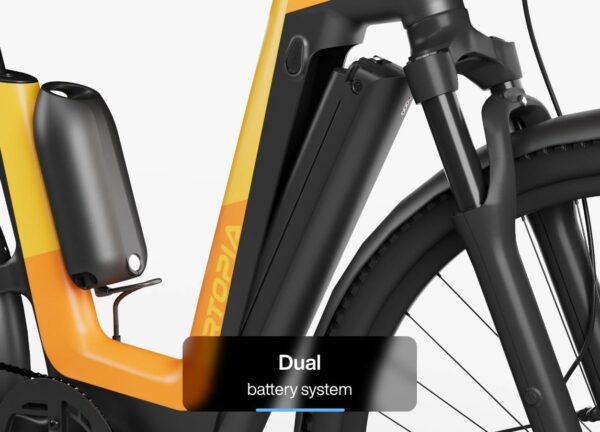

Dual Battery, Extended Range
Ride up to 120 miles with the optional second battery. Batteries are removable, easy to charge, and keep you going all day.
Geometry
| Frame Size | One Size |
|---|---|
| Recomm. rider height | 5’3’’ – 6’3’’ |
| A. Adjustable seat range | 120 mm |
| B. Handlebar grips height | 1142-1212 mm |
| C. Seat tube length | 455 mm |
| D. Wheelbase | 1178 mm |
| E. Overall length | 1917 mm |
| F. Wheel diameter | 741 mm |
| G. Top tube length (effective) | 600 mm |
| H. Head tube length | 135 mm |
| I. Headset height | 90-120 mm |
| J. Standover height | 470 mm |
Specs & Details
General Info
| Model | Carbon Fusion Pro Long Range eBike |
| Net Weight | 48 lbs w/o acc. |
| Material | Carbon fiber frame |
| Range | Up to 75 miles (Extended to 120 miles with dual battery)* |
| Top Speed | 20mph by default, 25mph upon unlock |
| Total Weight Limit | 330 lbs |
| Rider Height | 5’3’’ – 6’3’’ |
| Water Resistance | IP65 |
Ebike System
| Class | Class 2 by default / Class 3 upon unlock |
| Motor | 1000W (peak) rear hub, 60Nm |
| Throttle | Yes (up to 20mph) |
| Battery | 529.2Wh, UL-2271 certified, removable |
| Pedal Assist | 4 levels |
| Charger | 3.5H fast charger |
| Sensors | Torque sensor |
| Lights | Front: External 40 Lux | Rear: StVZO rear light (Not ARES lights) |
| Display | LCD Color display |
Drivetrain
| Chainrings | 44T |
| Crankset | Aluminum alloy, 170mm |
| Cassette | 11-40T, 8 Speed |
| Chain | YBN S8e, Silver |
| Rear Derailleur | Shimano ACERA 8-Speed |
| Shift Lever | 8 Speed Trigger |
| Pedals | 9/16″ Alloy Platform |
Cockpit
| Handlebar | Aluminum, extender 0-60° adjustable |

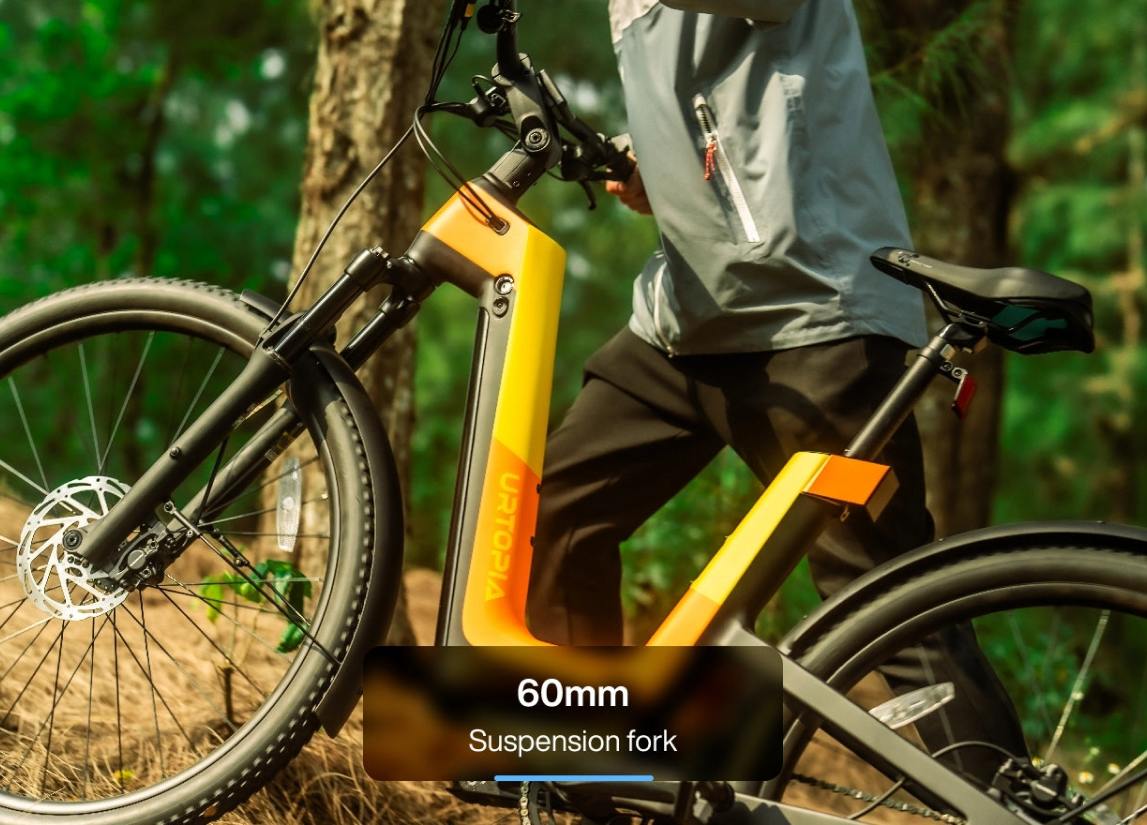

| Fork | ZOOM 188NS AMS 700C suspension fork, 60mm travel |
| Grips | Durable ergonomic grips, lockable |
| Seat Post | Aluminum Alloy, φ31.6mm |
