TOP SPEED
20 mph
RANGE
UP-TO 70 miles
MOTOR POWER
500W

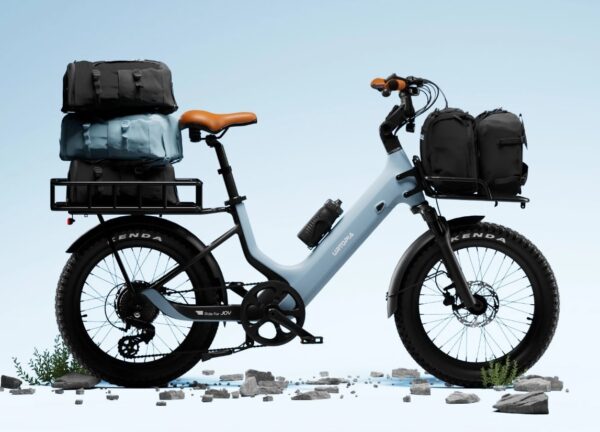

PAYLOAD
330 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year

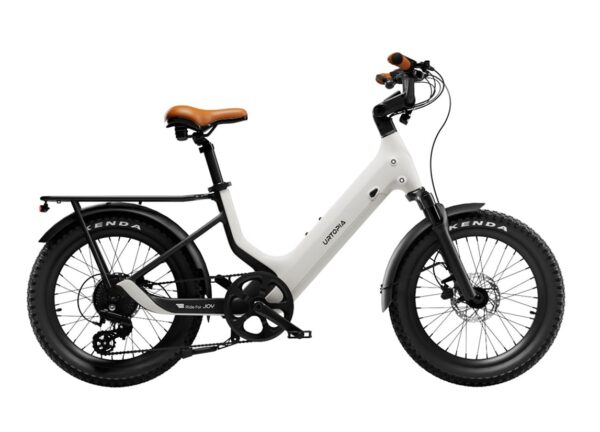

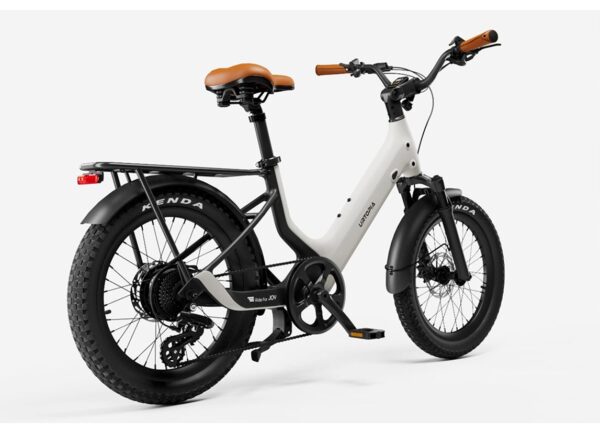

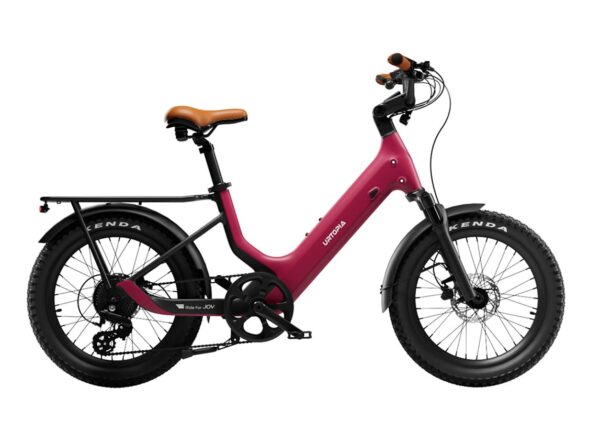

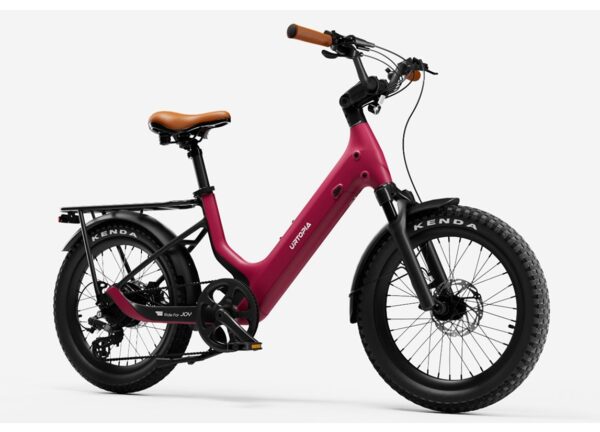

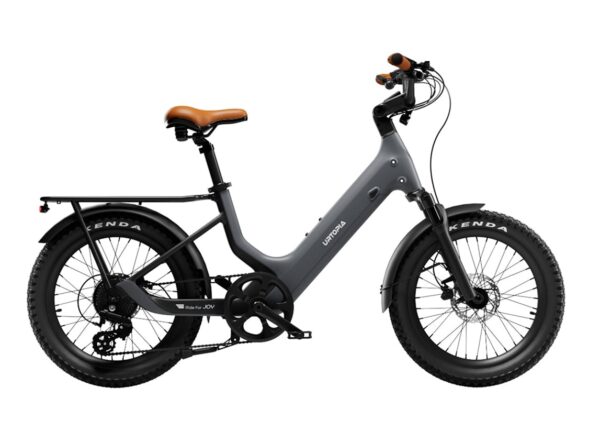

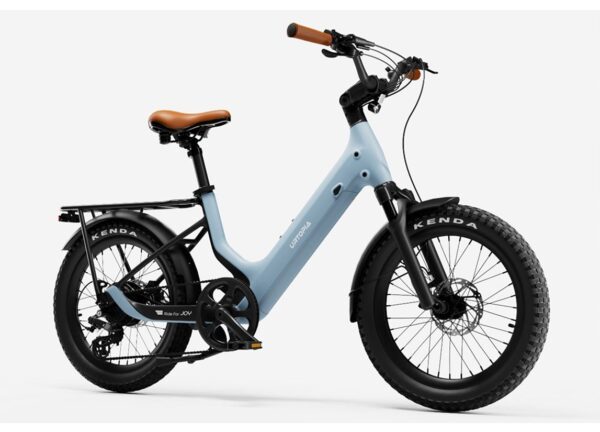

Luxury Carbon Frame
Joy’s seamless monocoque carbon frame stands out with its sculpted elegance—30% lighter than aluminum yet incredibly strong. This aerospace-grade carbon fiber delivers premium performance and peerless aesthetics for an effortless, elevated ride.
Throttle & Pedal Assist Control
Toggle between pedal assist and thumb throttle via an intuitive control panel. Enjoy instant acceleration with the thumb throttle—ideal for quick starts and heavy loads. For exercise, the torque-sensing pedal assist matches your effort for a natural ride.
Torque Sensor Boost
Joy Carbon Ebike’s smart torque sensor delivers precise motor assistance for effortless starts and stable climbs—especially when carrying heavy loads. Enjoy a natural ride feel plus 10-30% more range than cadence sensors

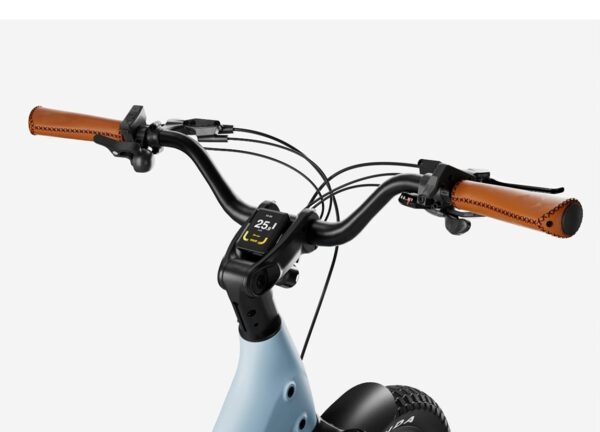

Adjustable Cruiser Handlebar
With a 0–60° adjustable design, this cruiser-style handlebar adapts to riders of nearly all heights. Effortlessly switch between a sporty forward-lean or a relaxed upright posture, ensuring comfort and control for any ride.
Geometry
| Frame Size | One Size |
|---|---|
| Recomm. rider height | 4’11’’~6’3’’ |
| A. Top Tube Length | 586 mm |
| B. Max Seat Height | 1010 mm |
| C. Min Seat Height | 770 mm |
| D. Overall Length | 1698 mm |
| E. Wheelbase | 1136.5 mm |
| F. Wheel Diameter | 560 mm |
| G. Head Tube Length | 190 mm |
| H. Handlebar Height | 1011 mm |
| I. Standover Height | 411 mm |
Specs & Details
General Info
| Model | Joy Carbon E-bike |
| Net Weight | 45 lbs w/o acc. |
| Material | Carbon fiber frame |
| Range | Up to 70 miles* |
| Top Speed | 20 mph (default), 25 mph (unlocked) |
| Total Weight Limit | 330 lbs |
| Rider Height | 4’11’’ – 6’3’’ |
| Water Resistance | IP65 |
Ebike System
| Class | Class 2 |
| Motor | 750W (peak) rear hub, 60Nm |
| Throttle | Yes (up to 20mph) |

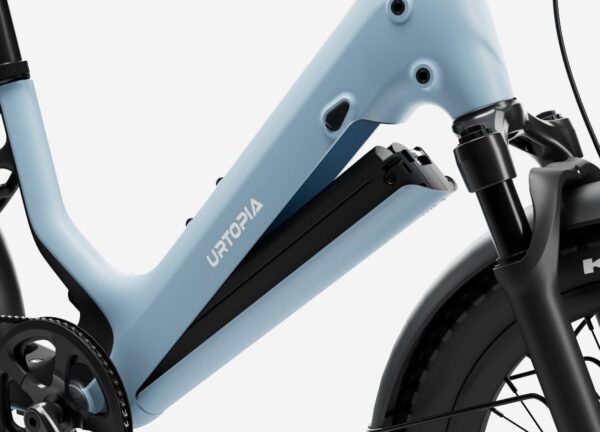

| Battery | 529.2Wh Samsung Li-ion, UL-2271 certified |
| Pedal Assist | 4 levels (Eco, Tour, Boost, Turbo) |
| Charger | 3.5 hrs fast charger |
| Sensors | Torque sensor |
| Lights | Front: External 30 Lux | Rear: Brake sensing tail light, rack mounted |
Drivetrain
| Chainrings | 50T |
| Crankset | Aluminum alloy, 152mm |
| Cassette | 12-32T, 8 Speed |
| Chain | Shimano 8 speed |
| Rear Derailleur | Shimano 8 speed |
| Shift Lever | 8 Speed Trigger |
| Pedals | PP, 103 x 84 x 24mm |
Cockpit
| Handlebar | Aluminum, extender 0-60° adjustable |
| Fork | 50mm travel suspension fork with preload adjustment |
| Grips | PU Leather |
| Comfort Saddle | 255 x 222 x 104mm |
| Seat Post | Aluminum Alloy, φ31.6mm, 240mm, 2-stage adjustable |
