TOP SPEED
28 MPH
RANGE
UP-TO 95 miles
MOTOR POWER
500W Peak
PAYLOAD
440 lbs
FOLDABLE
Not Foldable
BRAND WARRANTY
2-year

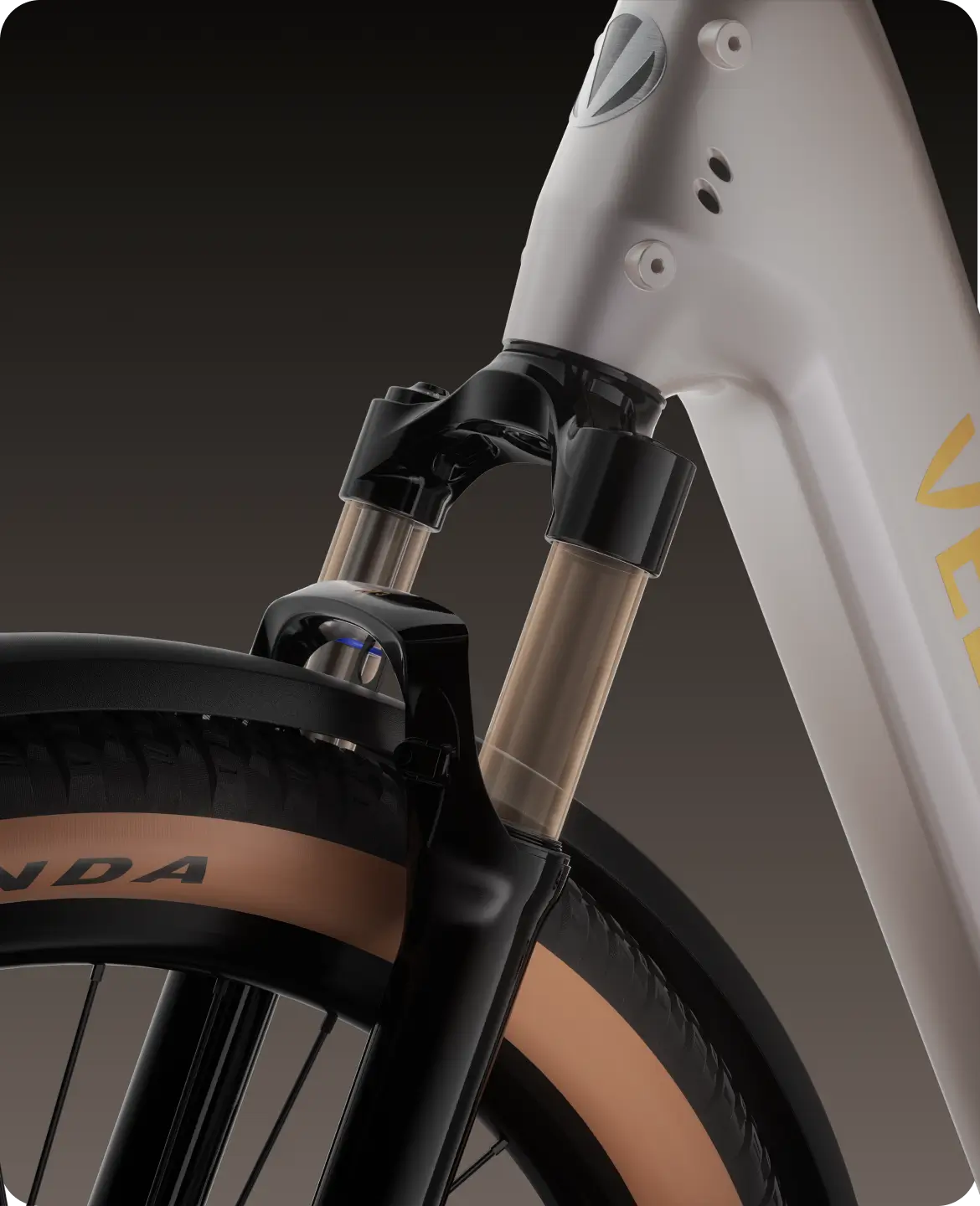

Adjustable Air Fork
Easily tune suspension stiffness based on rider weight and terrain, with adjustable rebound for added control.

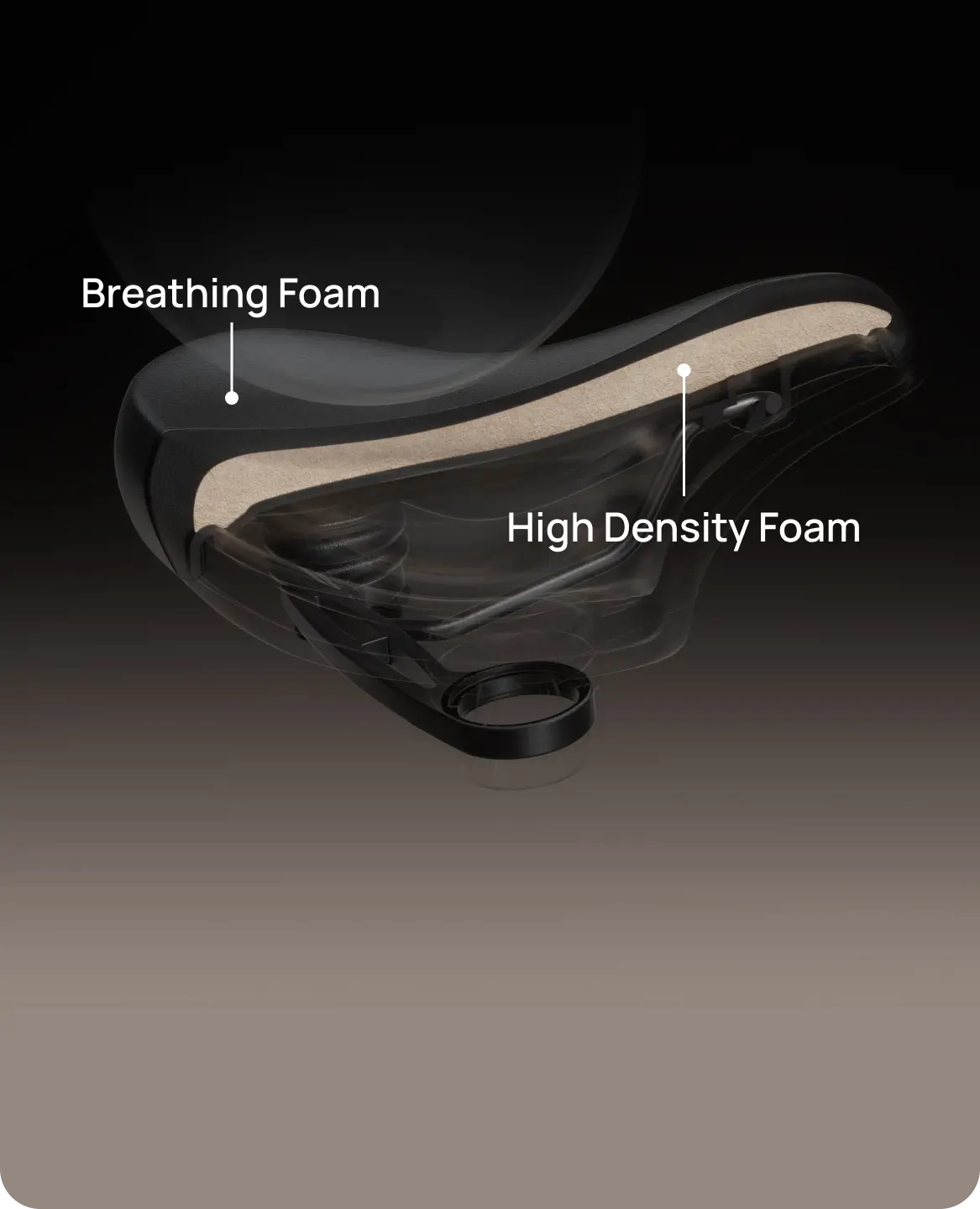

Breathable Saddle
All-new foam balances softness and support, with a breathable top layer and adaptive high-density base.

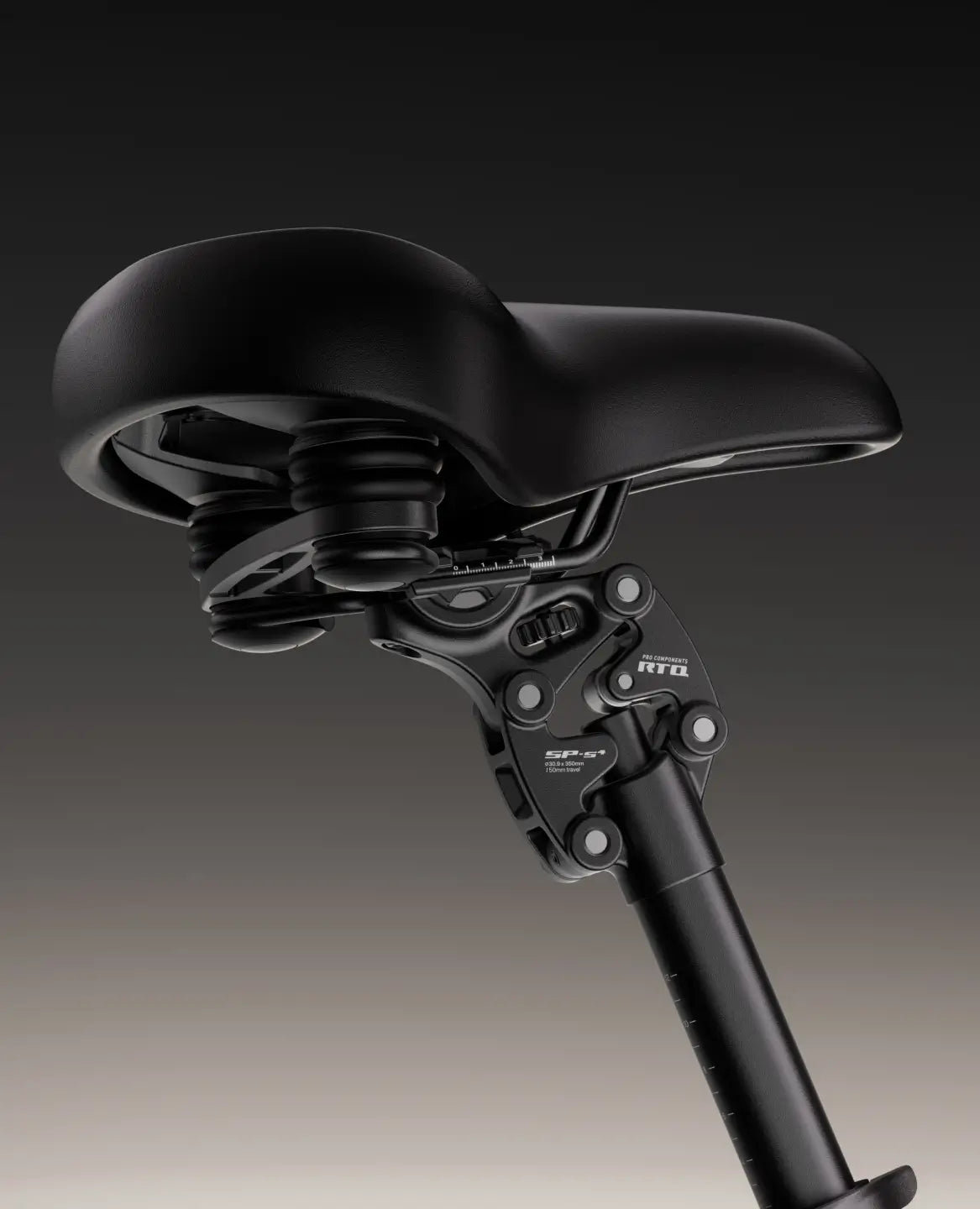

Suspension Seatpost
Absorbs road vibration and bumps, keeping longer rides feeling like you’ve only just started.

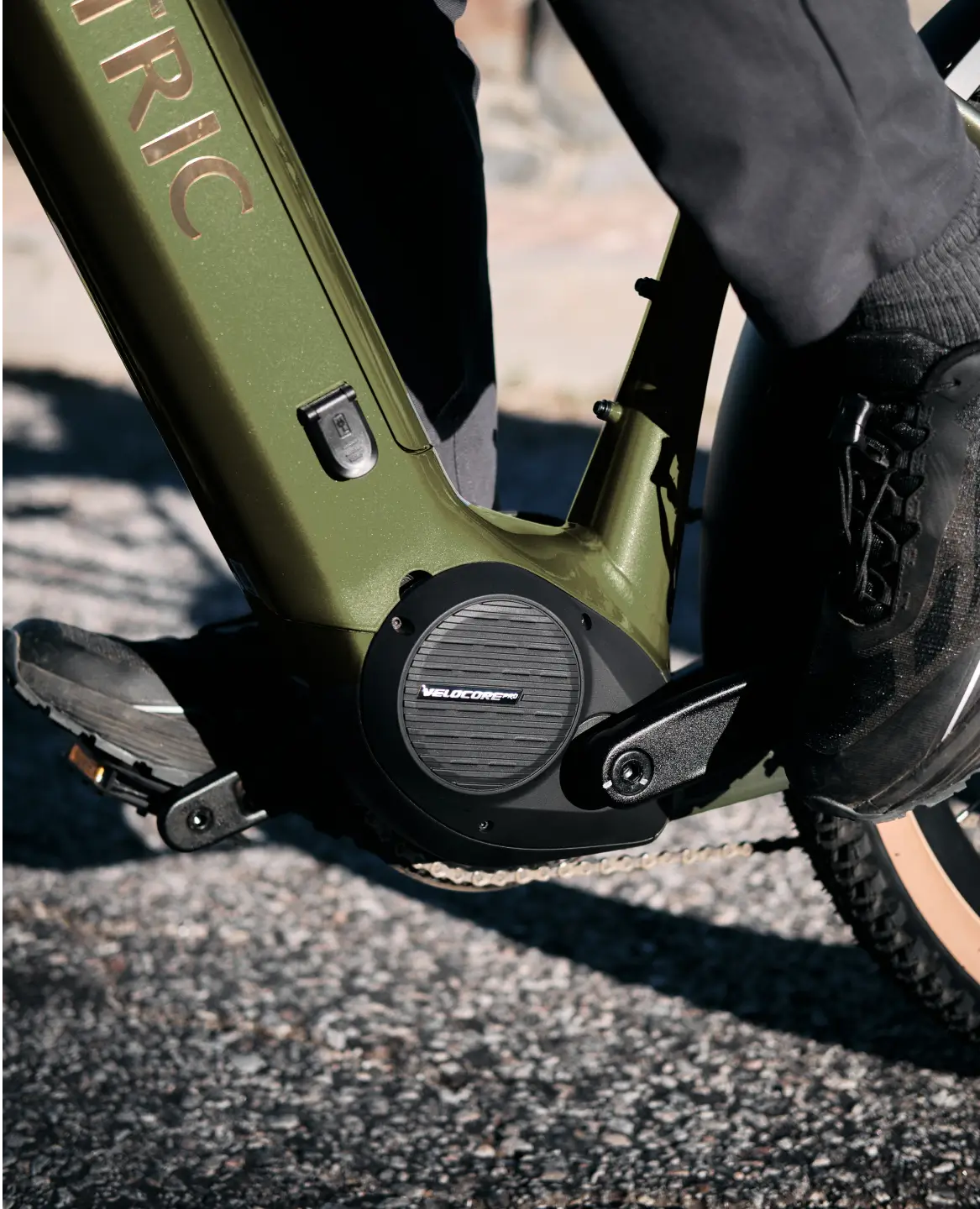

Low Step-Thru
Makes getting on and off easy and secure, especially for everyday riders.
Size Guide
| Measurement | Regular | Large |
|---|---|---|
| Recommended Rider Height | 5’2″ ~ 5’11” | 5’9″ ~ 6’7″ |
| Reach | 374 mm | 374 mm |
| Handlebar Height | 1110 mm | 1110 mm |
| Wheelbase | 1113 mm | 1113 mm |
| Stand-Over Height | 399 mm | 388 mm |
| Min Saddle Height | 838 mm | 910 mm |
| Max Saddle Height | 995 mm | 1065 mm |
| Total Length | 1812 mm | 1812 mm |
Specifications
Size Guide
| Bike Size | Regular / Large |
| User Height Range |
R: 5’2”~5’11” / L: 5’9”~6’7” (With Suspension Seatpost) R: 4’11”~5’9” / L: 5’6”~6’4” (Without Suspension Seatpost) |
Frameset
| Frame | Triple-Butted Aluminum Alloy |
| Fork | Air suspension 80mm Travel with Lock-out |
Electronics

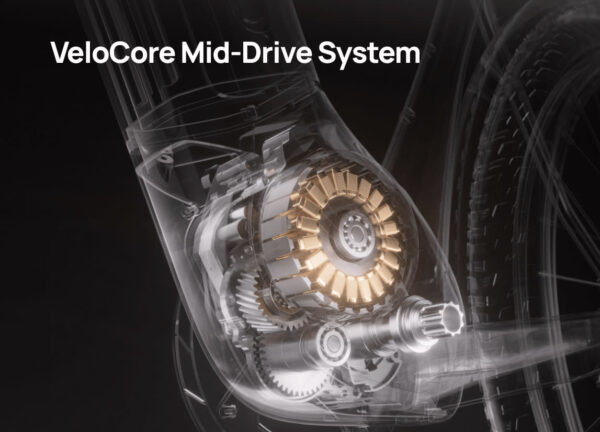

| Motor | 48V, 500W, 960W (Peak Power), 100Nm |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL 2271 |
| Cell | Samsung/LG 21700 cell, Certificated by UL2580 |
| Charger | 48V, 3A Fast Charger |
| Sensor | Torque and Cadence Sensor |

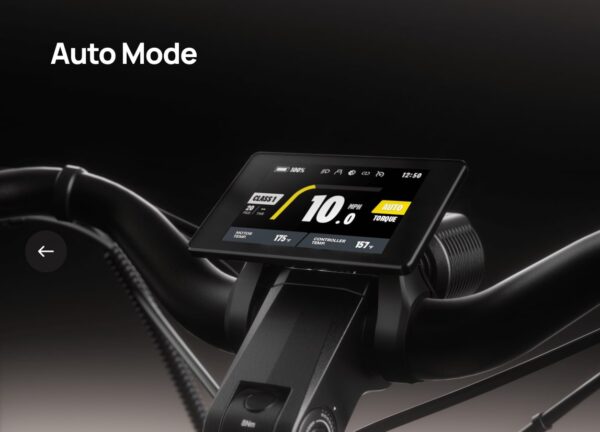

| Display | 3.5″ Full color, High brightness, Bluetooth, NFC, Adjustable Angle |
| USB Port | USB Type-C phone Charge |
| Throttle | Trigger-control, Removable |
| Pedal Assist | 4 Riding Modes + Auto Mode / Ride Tuning |
| Walk Mode | 2.9 MPH / Walk & Hold |
| Front Light | 500LM High-output Integrated LED, Adjustable Angle |
Lighting & Connectivity
Integrated lights and smart connectivity
| Rear Light | Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack |
| Water Resistant | IPX6 |
| App | App OTA |
| Anti-theft | Apple Find My & Android Find Hub, NFC Card Unlock |
Speed & Range
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Ebike Class | Class 1 / 2 / 3 |
| Pedal Assist Range | 95 Miles |
| Throttle Range | 70 Miles |
| Range Note | Actual range may vary depending on terrain, rider weight, and assist level. |
Drivetrain
| Chainrings | 46T Narrow-Wide Chainring |
| Crankset | Aluminum Alloy, 170mm |
| Cassette | 9-speed, 11-46T |
Transmission
| Rear Derailleur | SHIMANO Cues, 9-speed |
| Shift Lever | SHIMANO Cues, 9-speed |
| Chain | KMC eGlide 9-speed |
Brake
| Brake | Tektro Hydraulic Disc Brake |
| Rotors | 180mm Front / 180mm Rear |
| Brake Levers | Aluminum Alloy, with Power Cutoff |
| System | Hydraulic braking system |
| Safety | Motor power cut-off when braking |
| Performance | Reliable hydraulic braking performance |
Wheel
| Rims | Aluminum Alloy |
| Front Hub | NOVATEC Aluminum Alloy, 15x110mm Thru-axle |
Tires

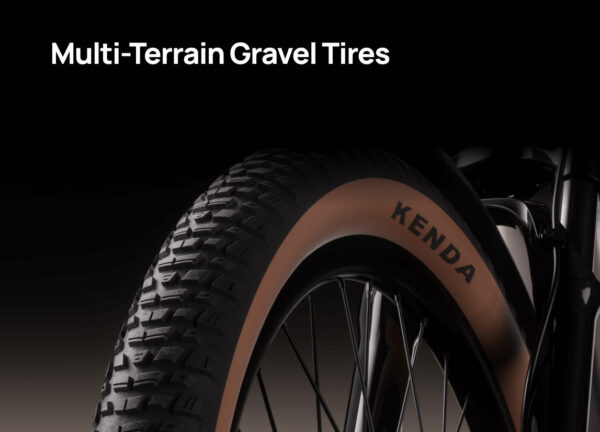

| Tire | KENDA 27.5×2.4″ eBike Puncture Resistant Tires |
| Type | MTB puncture-resistant eBike tires |
Cockpit
| Handlebar | Aluminum Alloy |
| Grips | Durable ergonomic grips |
Supports
| Rear Rack | Optional |
| Kickstand | Included |
Weight & Load
| Bike Weight | 60 lbs |
| Rear Rack Load Capacity | 66 lbs |
Max Load
| Max Bike Load Capacity | 440 lbs |
| Weight Note | *Weight does not include fenders, kickstands, or pedals. |
Certification
| UL Certification | UL2849 & UL2271 |
| ISO Standard | ISO 4210 |
